IBM 8408-E8E Site And Hardware Planning

Notes:
v No cascading allowed for the 5887 storage drawer.
v The 5887 storage drawer is connected to same numbered port on each adapter.
v HD AA cable is required.

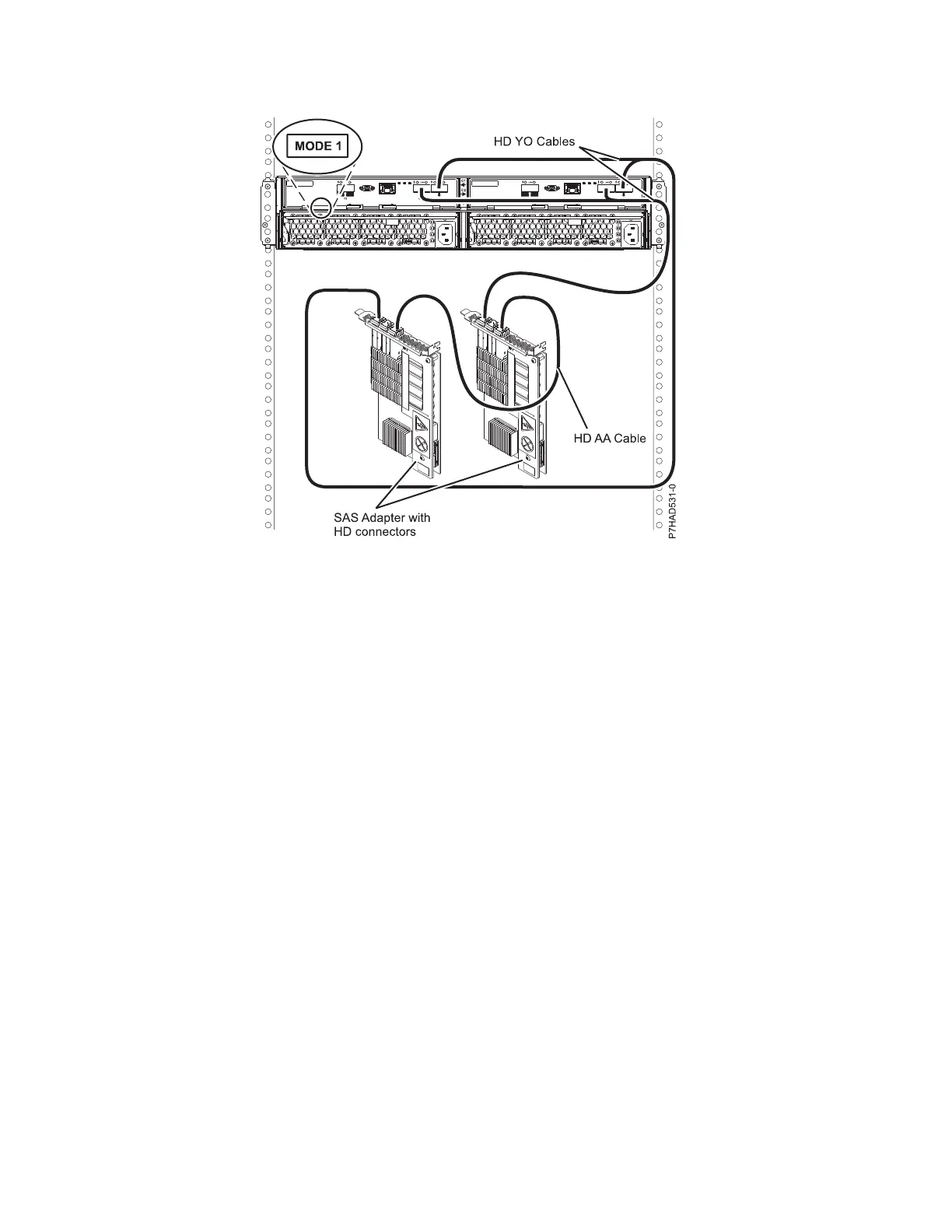

Figure 73. Two RAID SAS adapters with HD connectors to a disk expansion drawer in a multi-initiator HA mode
142 Site and hardware planning
