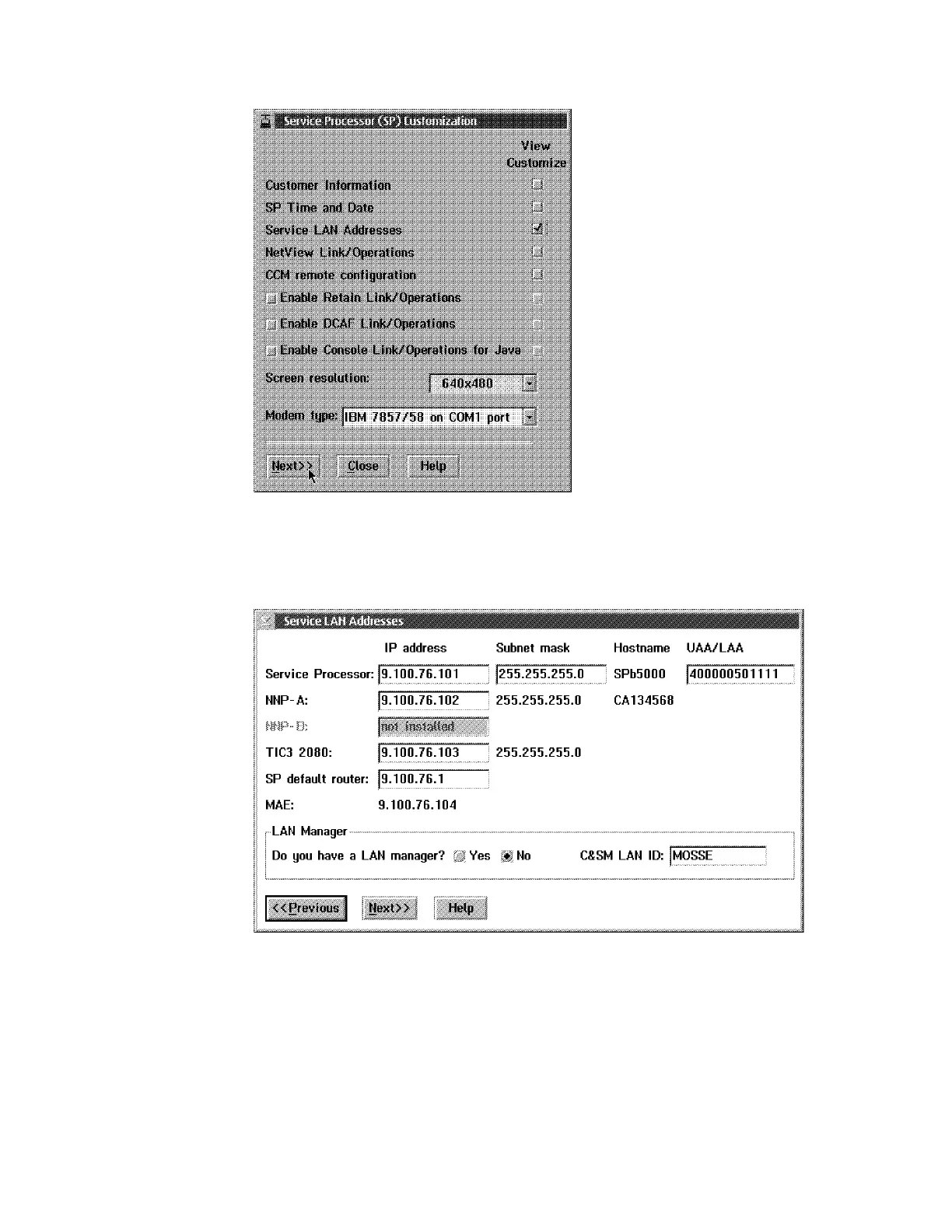

Figure 4-1. Service Processor Customization
d Record the IP address of the Service Processor, MAE, Router (if any)
and the Subnet mask.
Figure 4-2. Service LAN addresses
e Then to exit from SP customization, click on Previous, Close, and NO.
2 Remove the MAE
a Ask the customer to stop the traffic on all the Multiaccess Enclosure.
b On the Service Processor select the 3746/9x0 Menu.
4-6 3746-9X0: MAE Installation and Maintenance
