Front View
Rear View
1st
LCB
1st
LCB
2nd
LCB
2nd
LCB
3rd
LCB
3rd
LCB
4th
LCB
4th
LCB

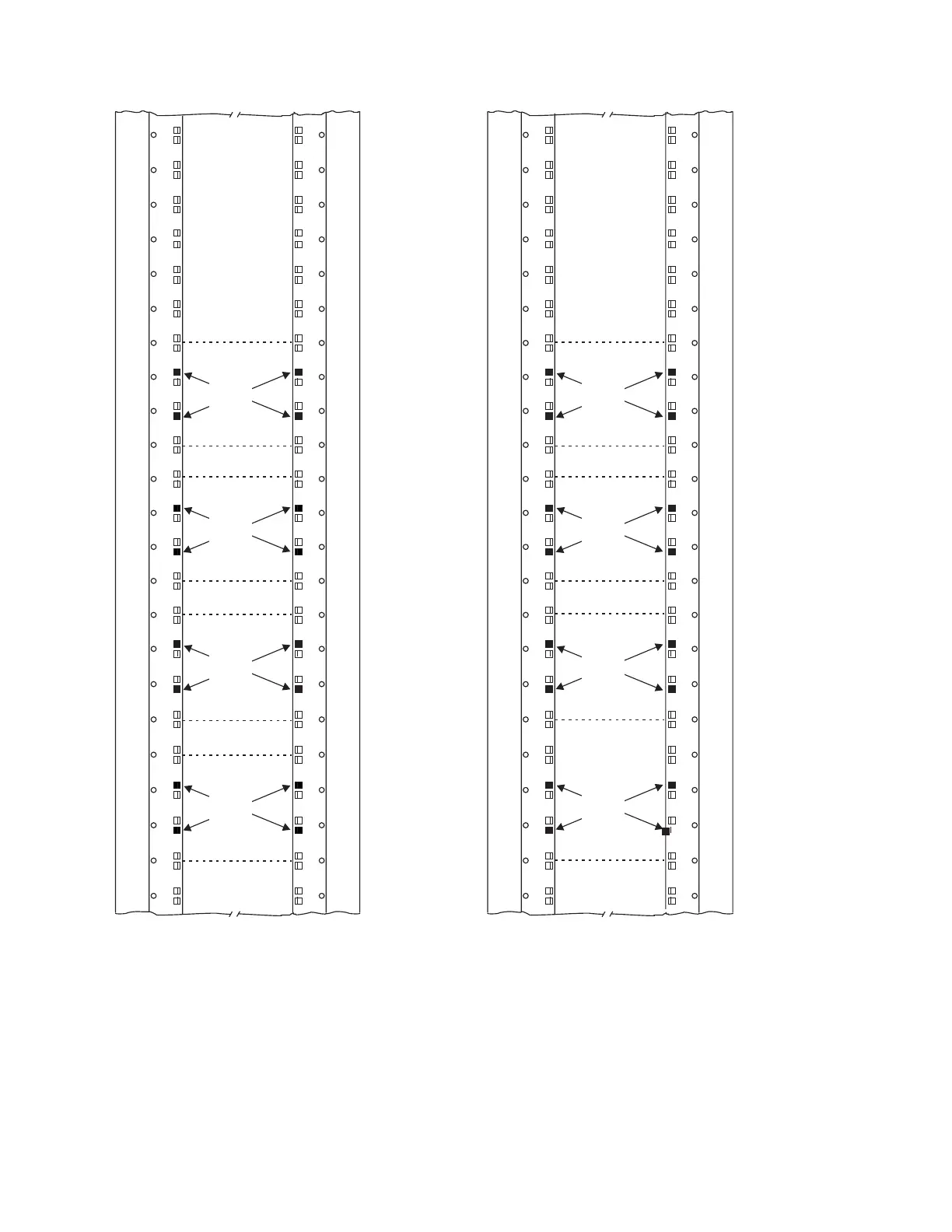

Figure D-4. Installing Captive Nuts for LCBs
Note: This symbol '■' identify the locations to install the captive nuts.
Appendix D. Controller Expansion Component Locations D-5
