Rear ports

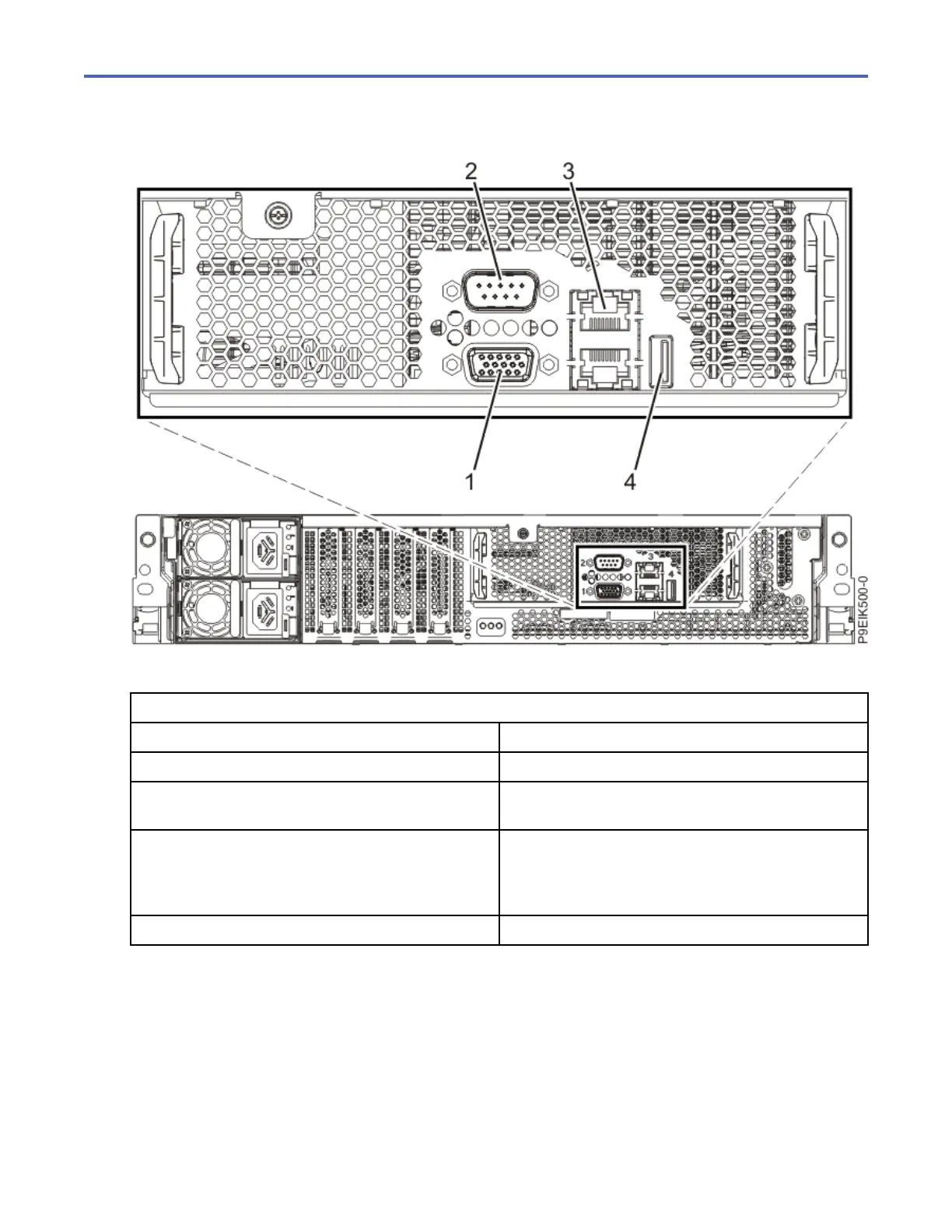

Figure 6. Rear view of the system with ports displayed
Table 1. Port descriptions
Identier Description
1 Video Graphics Array (VGA)
2 Intelligent Platform Management Interface (IPMI)
serial
3 Ethernet. Use the top Ethernet port for the BMC/
IPMI interface (as PHY0). Use the bottom Ethernet
port for any direct operating system usage (as
PHY1).
4 USB 3.0
©
Copyright IBM Corp. 2017, 2020 9
