IBM PC 300GL

Use the following steps to set up your computer:

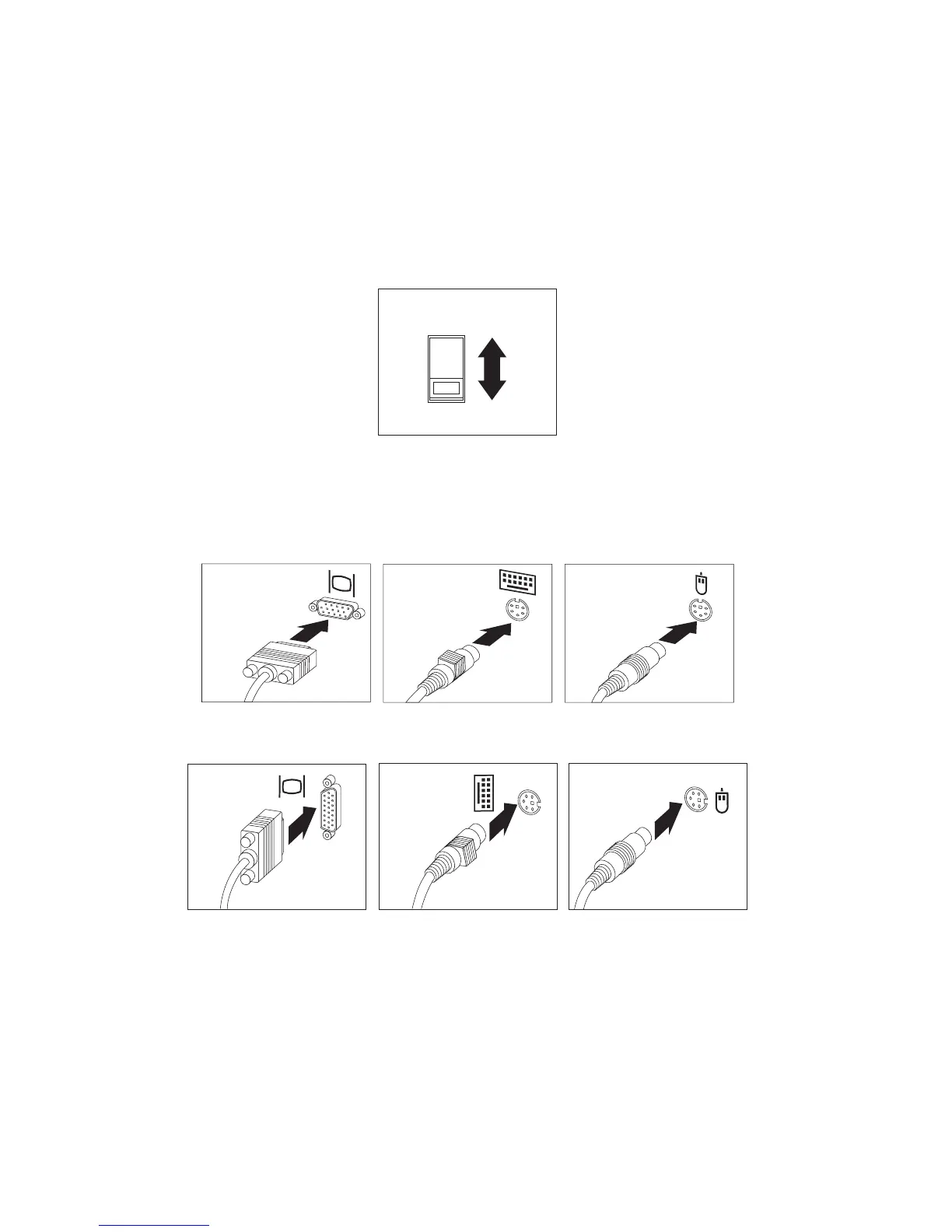

1. Check the position of the voltage-selection switch. Use a ballpoint pen
to slide the switch, if necessary.
 If the voltage supply range is 90–137 V ac, set the voltage switch to
115 V.
 If the voltage supply range is 180–265 V ac, set the voltage switch
to 230 V.
Voltage Switch
115
2. Connect the monitor cable to the monitor (if it is not already attached),
then to the monitor connector and tighten the attachment screws.
Connect the keyboard cable to the gray keyboard connector. Connect
the mouse cable to the green mouse connector.
Keyboard Mouse
Monitor
Desktop
Mouse
Monitor
Keyboard
Tower
Note: If your computer comes with Windows NT Workstation and a
ScrollPoint

2 mouse, the first time you start up your computer,
your mouse will function, but your mouse will not have its
ScrollPoint function. You must shut down and restart to enable
the ScrollPoint function.
12 PC 300GL User Guide
