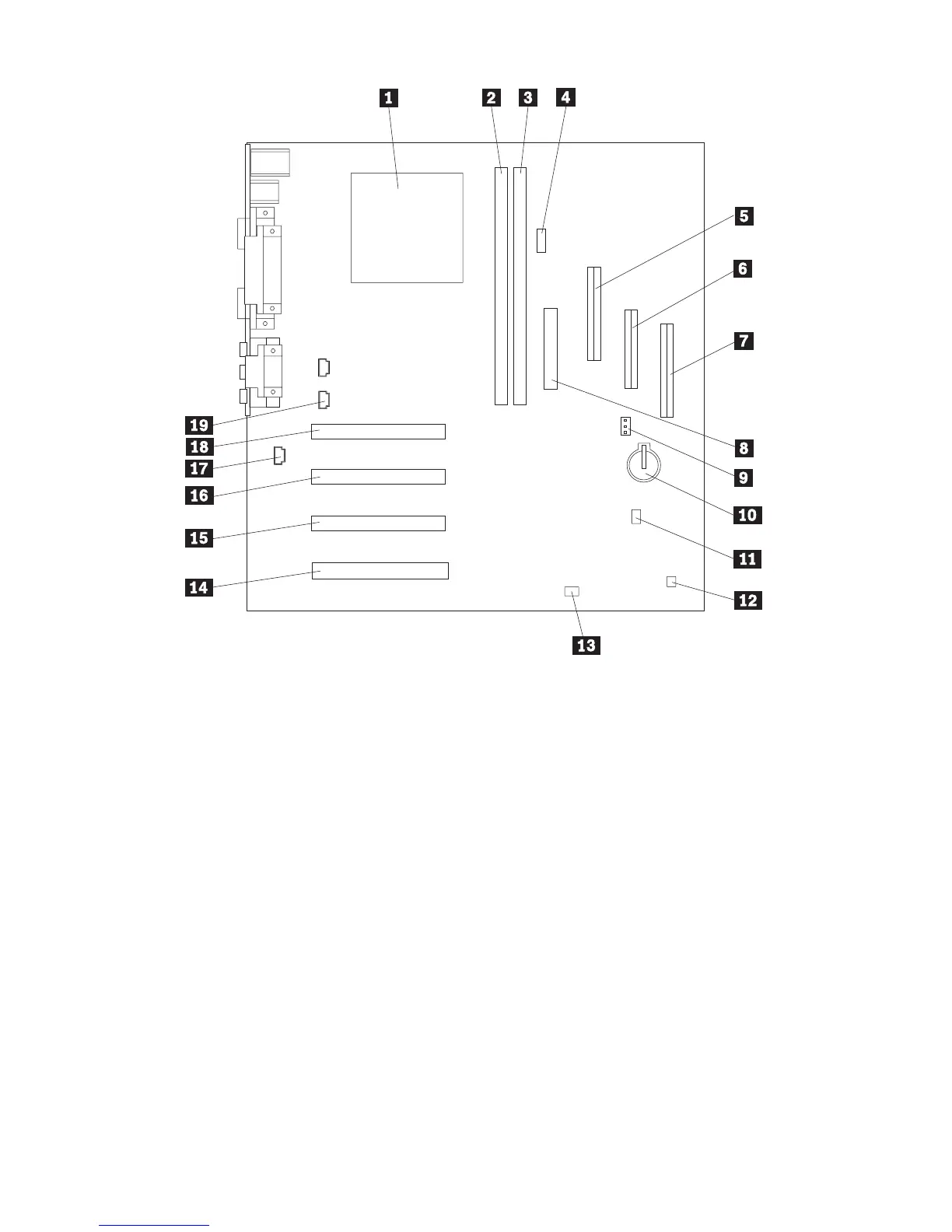

.1/ Microprocessor
.2/ DIMM 0
.3/ DIMM 1
.4/ Alert on LAN connector
.5/ Secondary EIDE controller
.6/ Diskette connector
.7/ Primary EIDE connector
.8/ Power connector
.9/ Fan connector
.1ð/ Battery
.11/ Wake on LAN connector
.12/ PC/PCI legacy audio adapter
.13/ Clear CMOS/recovery jumper
.14/ PCI adapter slot 4
.15/ PCI adapter slot 3
.16/ PCI adapter slot 2
.17/ Chassis speaker connector
.18/ PCI adapter slot 1
.19/ CD-ROM connector
Chapter 6. Installing options 65
