Server components

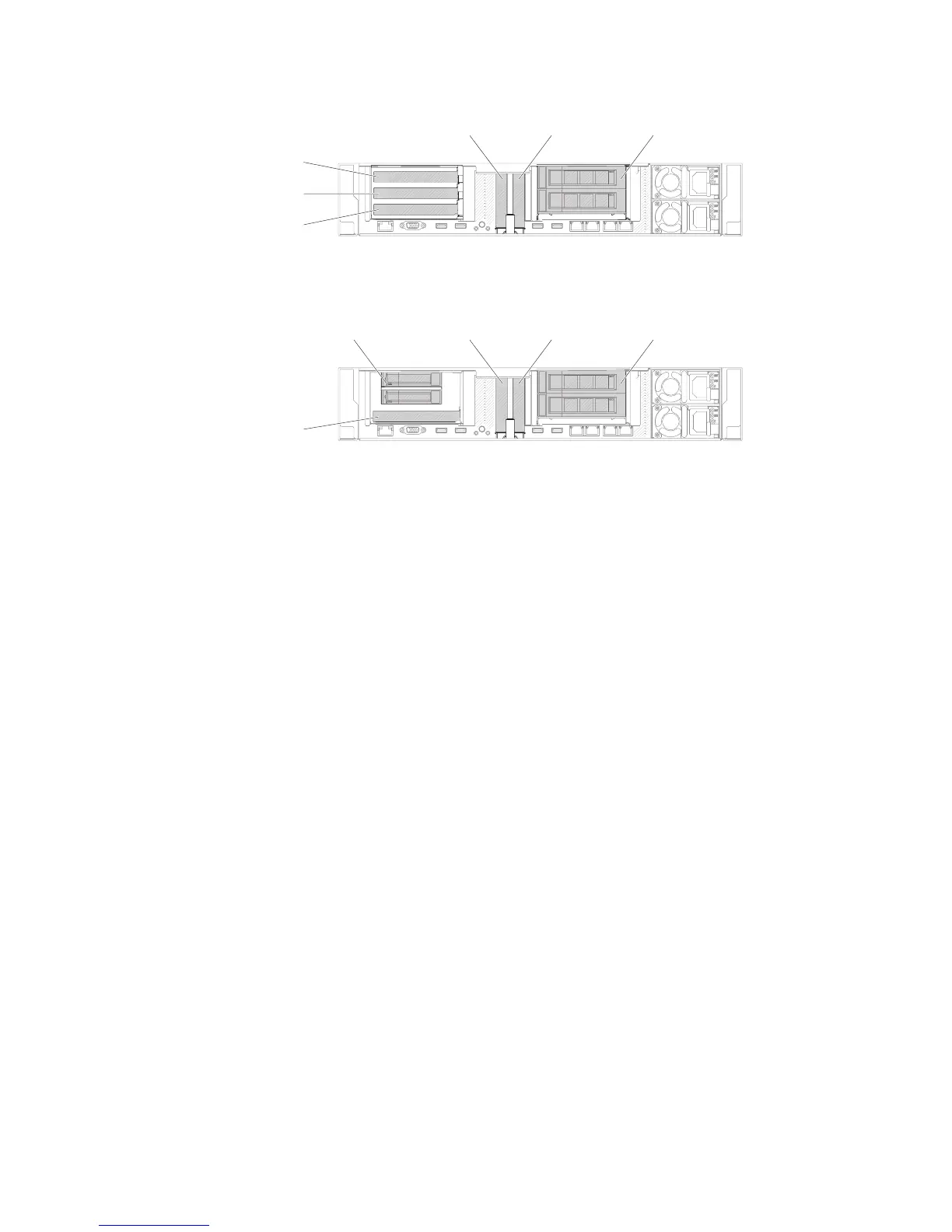

The following illustration shows the major components in the server.
The illustrations in this document might differ slightly from your hardware.
Slot 1
Slot 2
Slot 3
Slot 4 Slot 5
3.5-inch rear two
hard-disk-drive kit
Figure 22. PCI riser-card adapter expansion slot locations
Slot 4 Slot 5
3.5-inch rear two
hard-disk-drive kit
Slot 3
2.5-inch rear two
hard-disk-drive kit
Figure 23. PCI riser-card adapter expansion slot locations
Chapter 1. The System x3650 M5 server 27
