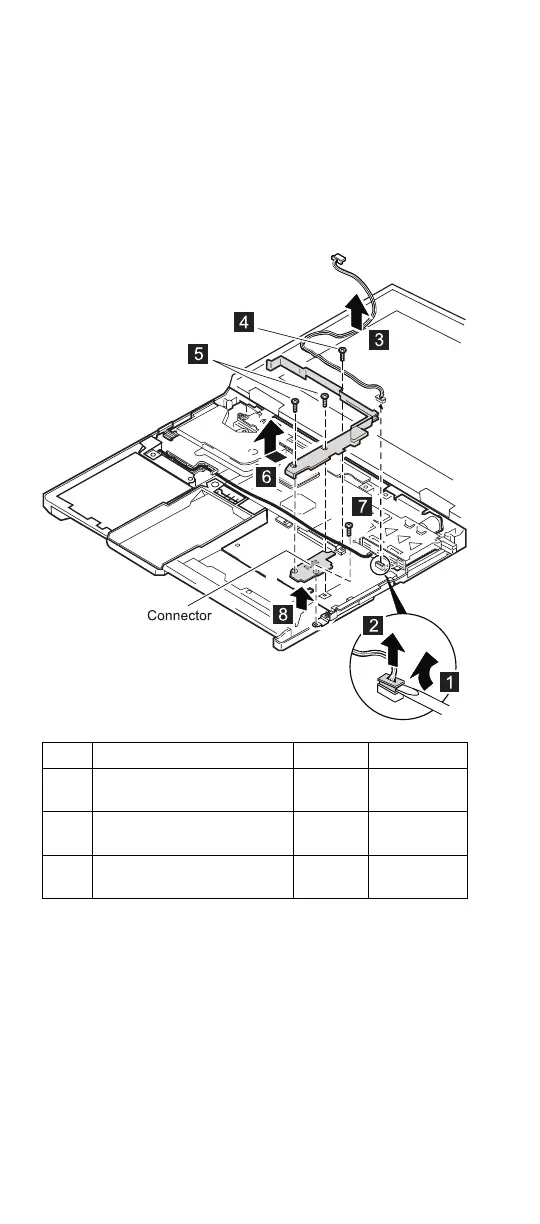

FRU REMOVALS AND REPLACEMENTS
1130 Guide rail, microphone cable, or
TV Out card
Battery pack (1030)
Hard disk drive (1040)
UltraslimBay device (1050)
Keyboard assembly (1060)
Sub card (1120)
When replacing: Make sure the connector on the TV Out
card is firmly connected.
Step Screw (Quantity) Color Torque
.4/ M2.0 × 9.5 mm,
nylon-coated (1)
Black 2.5 kgcm
.5/ M2.5 × 4.8 mm,
nylon-coated (2)
Black 4 kgcm
.7/ M2.5 × 7 mm,
nylon-coated (1)
Yellow 4 kgcm
54 ThinkPad 600X Hardware Maintenence Manual
