Checking the Battery Pack: Battery charging will
not start until the Fuel-Gauge shows that less than 90% of
the total power remains; with this condition the battery
pack will charge to 100% of its capacity. This protects the
battery pack from being over-charged or having a
shortened life.
Before you do the following steps, check the following:
 The correct battery pack is used for the model.
 The storage switch set to on (|).
1. Power-off the computer.

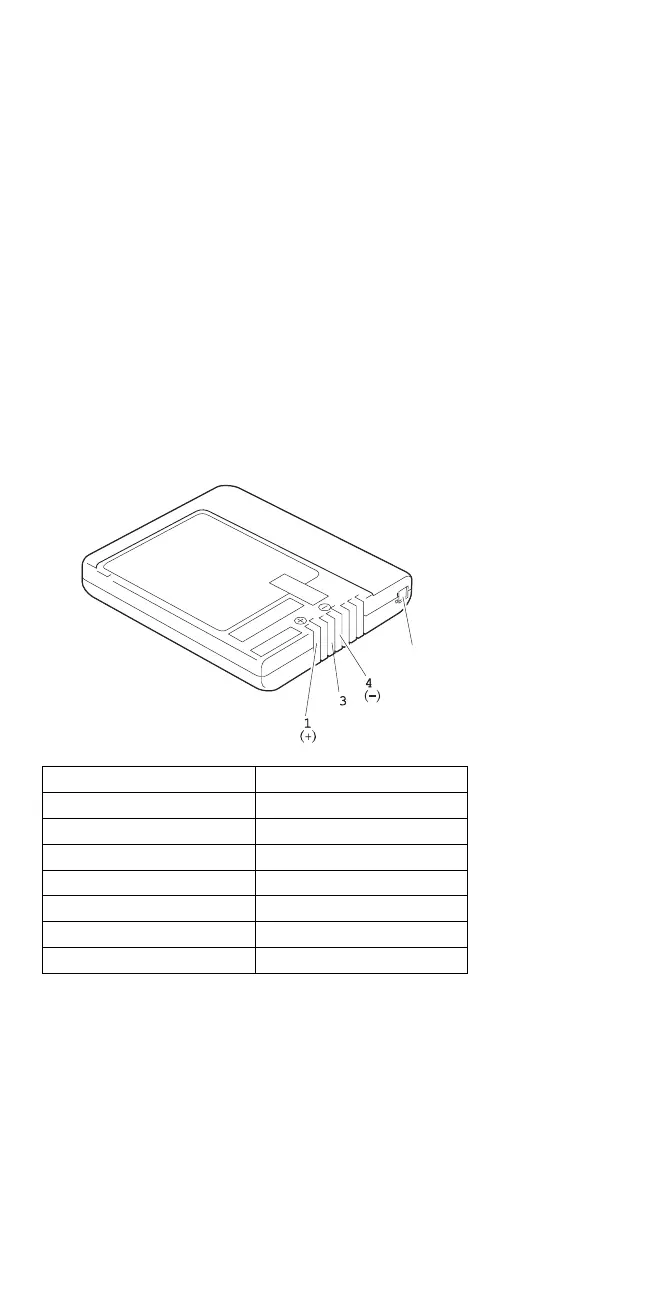

2. Remove the battery pack and measure the voltage
between battery terminals 1 (+) and 4 (−). See the
following figure.
Ni-MH Battery Pack
(T)
Storage Switch
Li-ion Battery Pack
Note: Li-ion battery is optional for Model 755CDV.
Terminal Voltage (V dc) / Signal
1 +8.0 to +16.0
2 Send
3 Thermal
4 Ground (−)
5 NC
6 NC
7 NC
324 IBM Mobile Systems HMM
