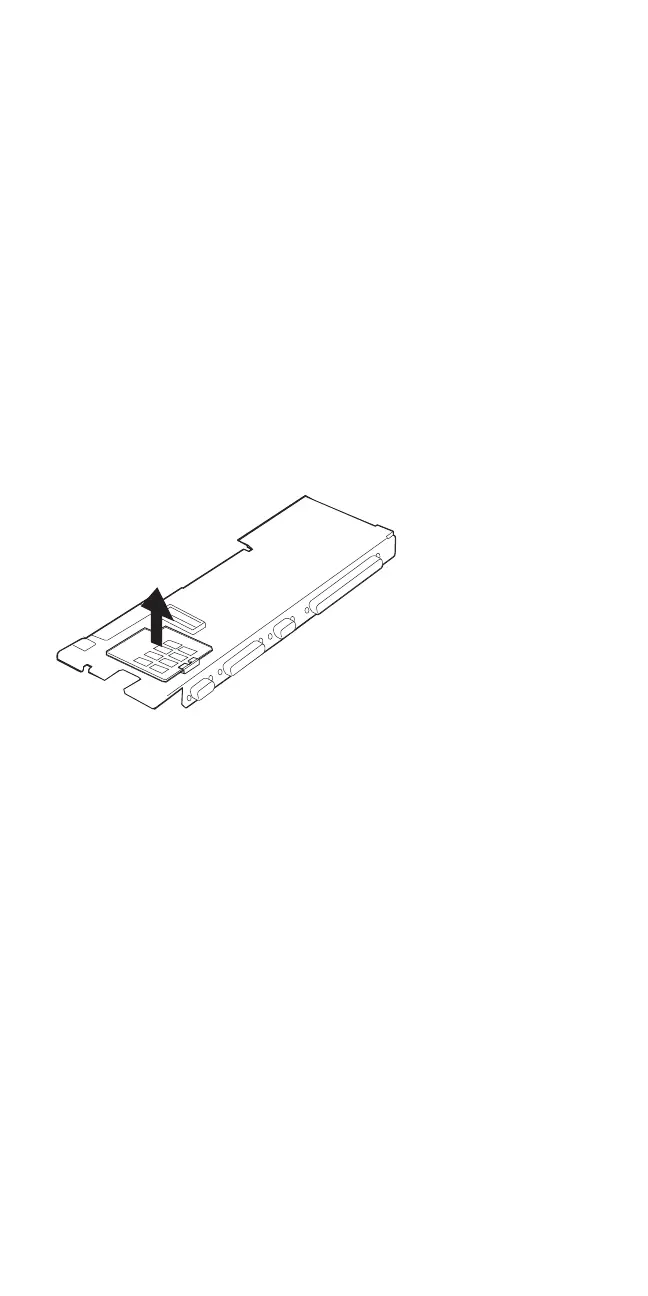

1210 Memory Card
 Battery Pack (1020)
 Diskette Drive (1030)
 Hard Disk Drive (1040)
 Keyboard Unit (1080)
 Status Indicator (1090)
 Standby Battery and Front IR (1100)
 Backup Battery (1110)
 Logic Assembly (1115)
 Shield Assembly (1120)
 DC/DC Card (1130)
 DSP Card (1140)
 Interposer Card and Rear IR (1150)
 Processor Card (1180)
 PCMCIA Slot Assembly (1170)
 System Board Assembly (1160)
 Lower Shield Assembly (1200)
Note: If the computer does not complete POST after
changing the memory card, reseat the card and try again.
ThinkPad 755CE, 755CSE, 755CV, 755CX (9545)
457
