IBM ThinkPad 770ED - Page 110

FRU REMOVALS AND REPLACEMENTS

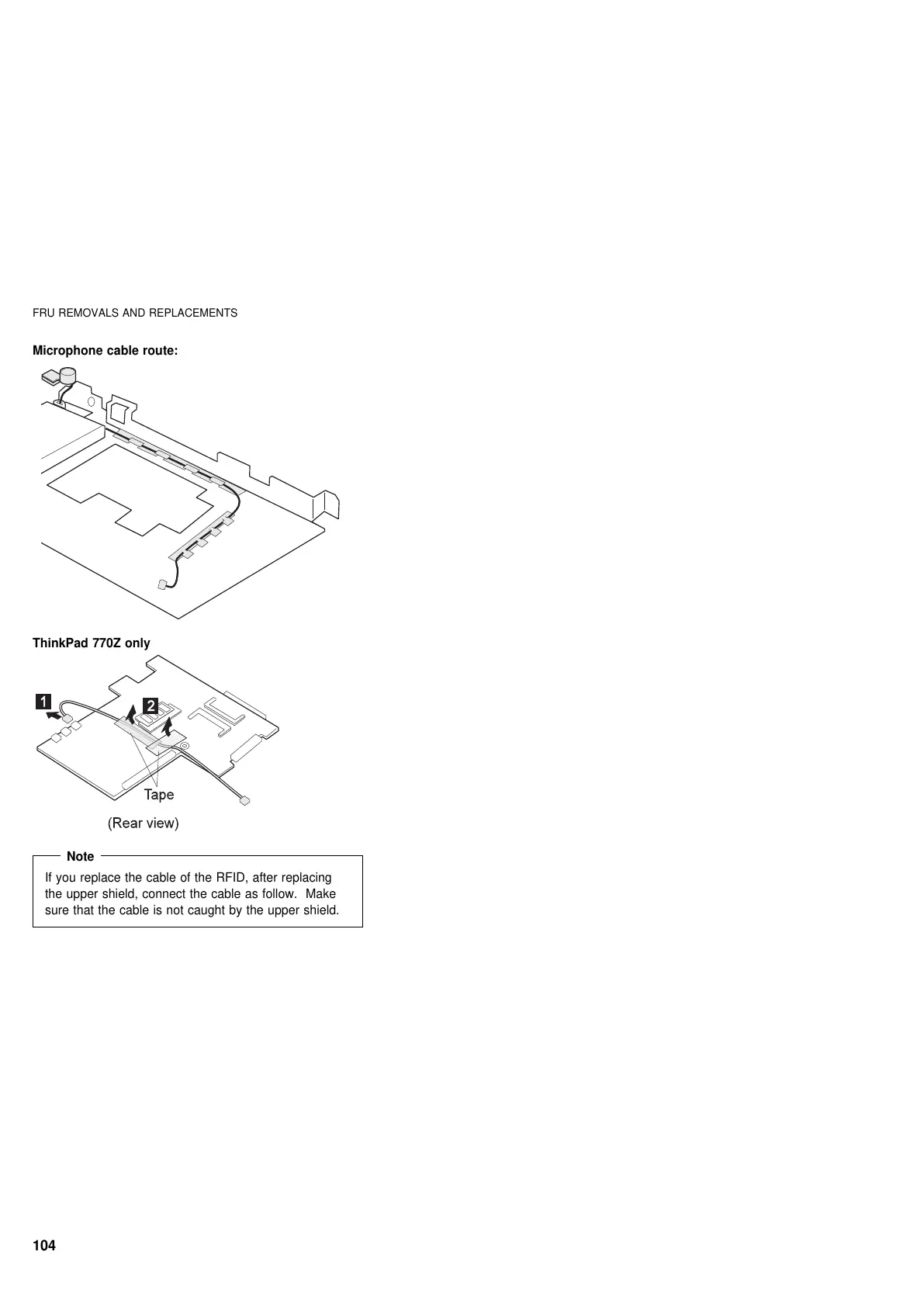

Microphone cable route:
ThinkPad 770Z only
Note
If you replace the cable of the RFID, after replacing
the upper shield, connect the cable as follow. Make
sure that the cable is not caught by the upper shield.
104
