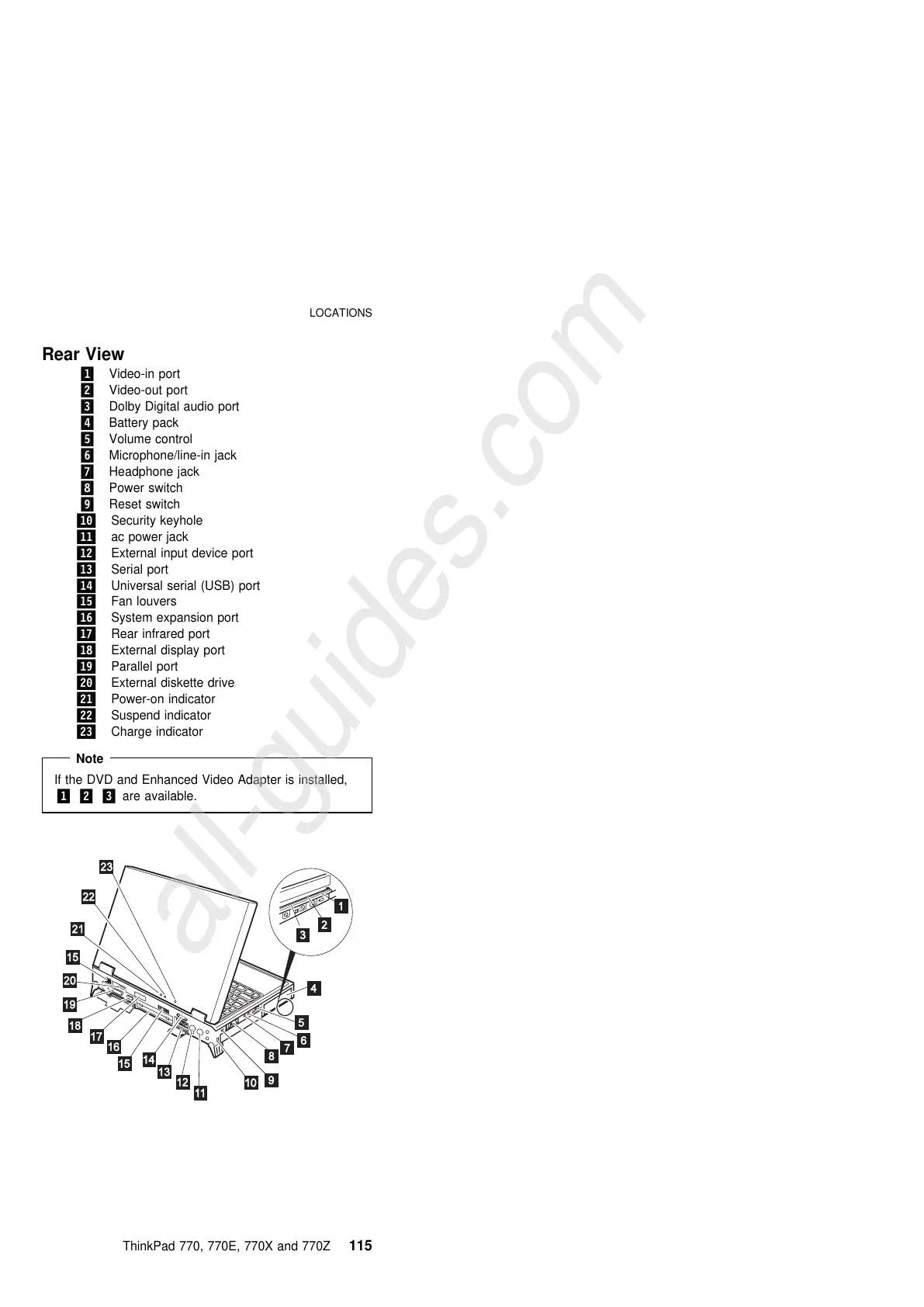

LOCATIONS
Rear View
.1/ Video-in port
.2/ Video-out port
.3/ Dolby Digital audio port
.4/ Battery pack
.5/ Volume control
.6/ Microphone/line-in jack
.7/ Headphone jack
.8/ Power switch
.9/ Reset switch
.1ð/ Security keyhole
.11/ ac power jack
.12/ External input device port
.13/ Serial port
.14/ Universal serial (USB) port
.15/ Fan louvers
.16/ System expansion port
.17/ Rear infrared port
.18/ External display port
.19/ Parallel port
.2ð/ External diskette drive
.21/ Power-on indicator
.22/ Suspend indicator
.23/ Charge indicator
Note
If the DVD and Enhanced Video Adapter is installed,
.1/ .2/ .3/ are available.
