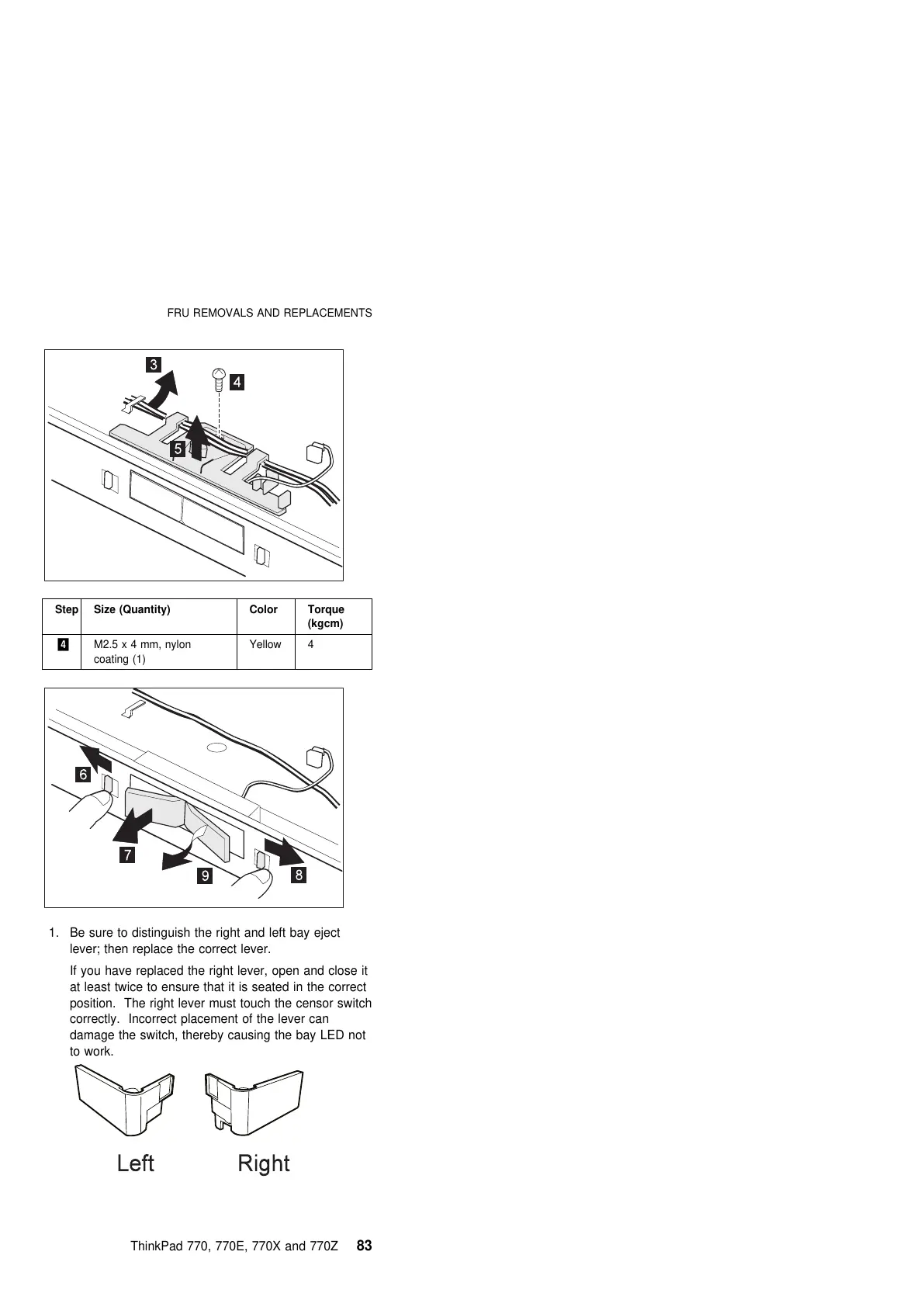

FRU REMOVALS AND REPLACEMENTS
1. Be sure to distinguish the right and left bay eject
lever; then replace the correct lever.
If you have replaced the right lever, open and close it
at least twice to ensure that it is seated in the correct
position. The right lever must touch the censor switch
correctly. Incorrect placement of the lever can
damage the switch, thereby causing the bay LED not
to work.
Step Size (Quantity) Color Torque
(kgcm)
.4/ M2.5 x 4 mm, nylon
coating (1)
Yellow 4
ThinkPad 770, 770E, 770X and 770Z 83
