22. Sample Setups

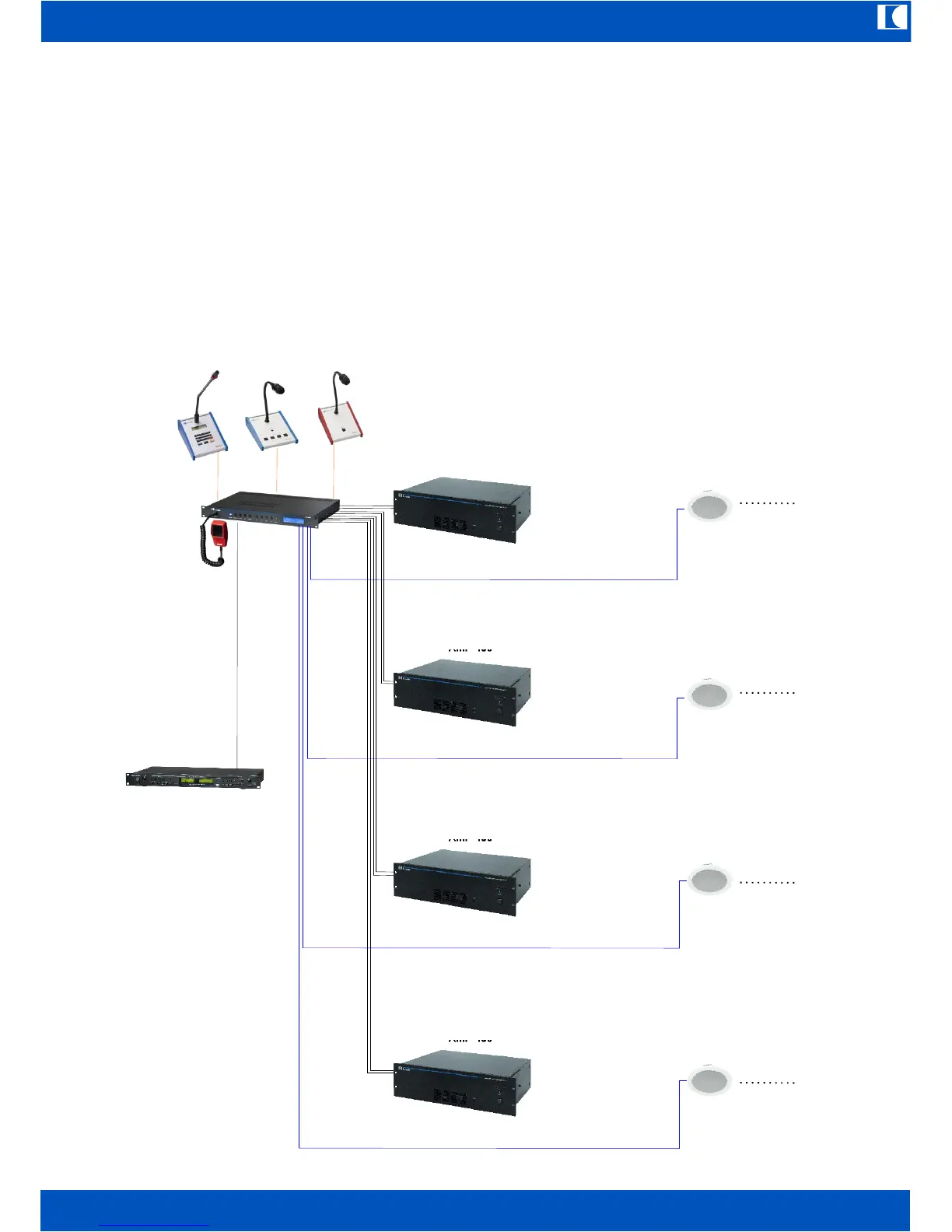

22.1 Standard configuration
1 or 2 fireman callstation(s)
Up to 8 EV-PAGE with or without preannouncement chime
Up to 30 EV-P4 with or without preannouncement chime
2 stored emergency announcements
1 AUX-input with contact activating (request)
1 stored message
1 chime for breaks
1 program/backgroundmusic input
Maximum 4 zones without EV-REL relay card
EV-5000
EV-P4
RAC 02 CD/MP3
Background music
AMP 480
CH 1 OUT
CH 2 OUT
CH 3 OUT
CH 4 OUT
AMP 480
AMP 480
AMP 480
Audio in+
100V Line
Speaker line 1 (100V)
Speaker line 2 (100V)
Speaker line 3 (100V)
Speaker line 4 (100V)
Audio in+
100V Line
Audio in+
100V Line
Audio in+
100V Line
EV-PAGE EV-EVAC 1
EV-EVAC MIC
