9

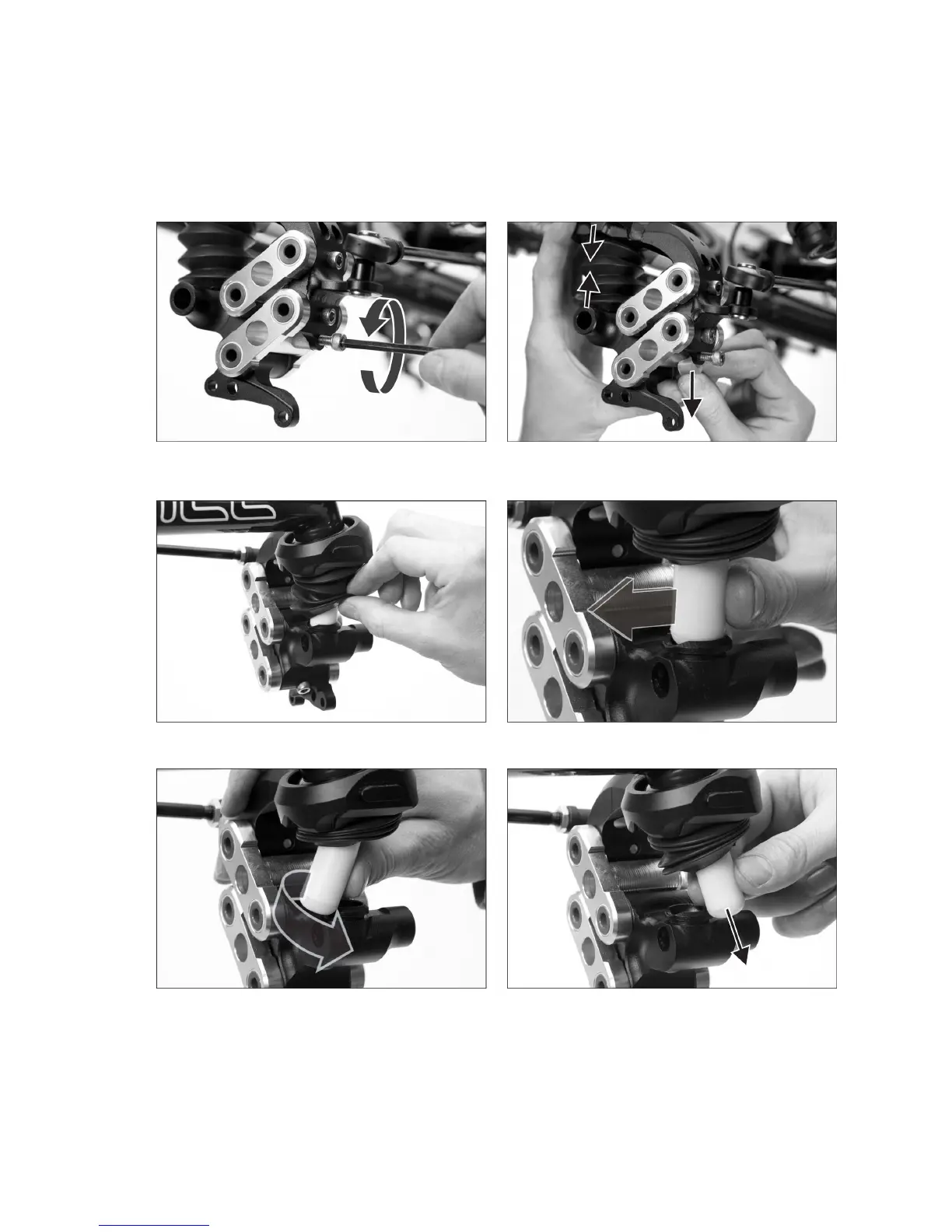

To remove the elastomer:
To remove the suspension elastomer, first loosen the
stop screw.
Compress the suspension unit and remove the rubber
bumper.
Slide the rubber gaiter off at the bottom. Push the bottom of the elastomer out of the locating
hole.
Slide the bottom of the elastomer around to the front of
the king post.
It should now be easy to remove the elastomer fully.
