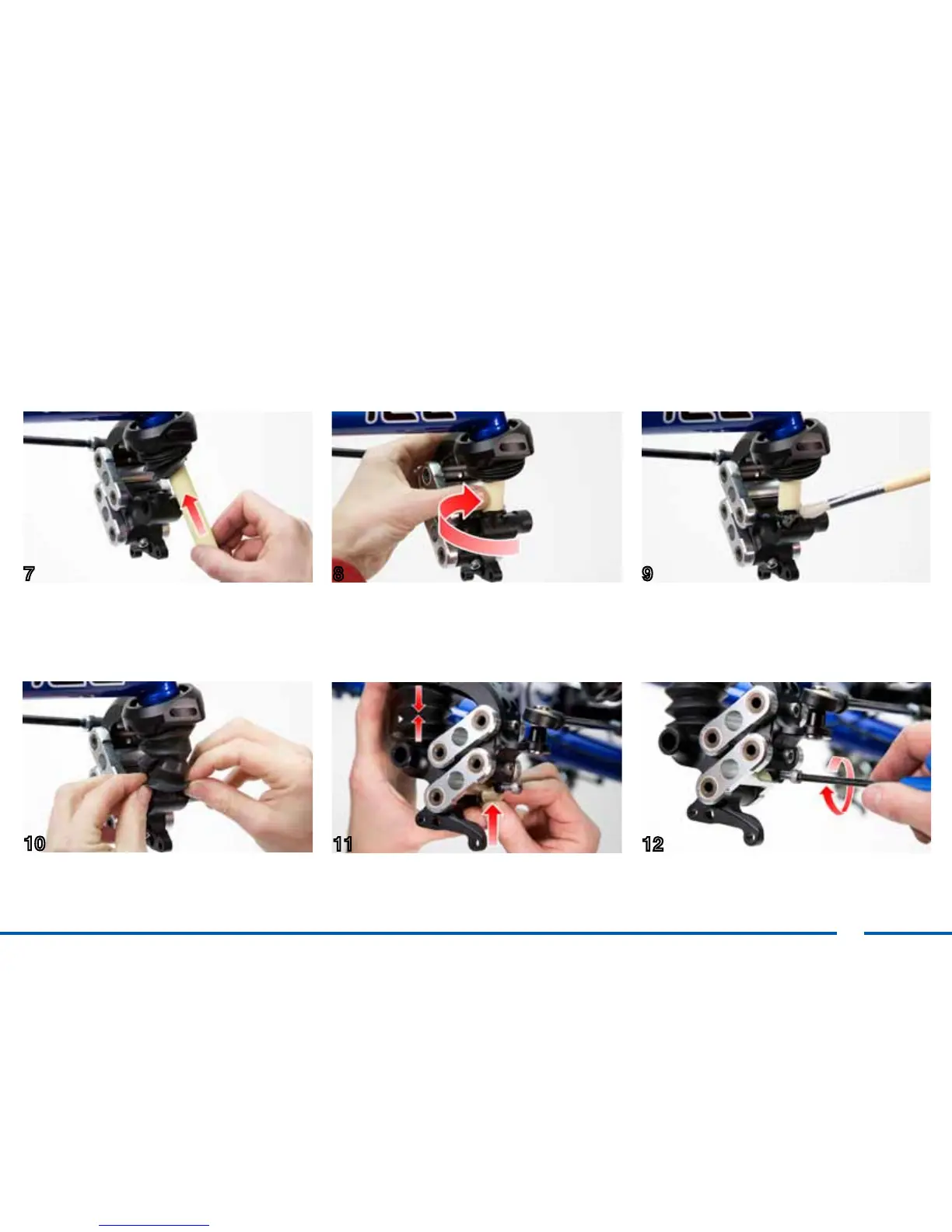

To replace the elastomer, first grease the
elastomer all over then slide it into the kingpost.
Push the bottom of the elastomer around to the
side and into the locating hole.
Apply soapy water to the gaiter groove to aid
fitting.
Slide on the rubber gaiter at the bottom,
checking to make sure that it is properly seated.
Compress the suspension unit and insert the
rubber bumper.
Tighten the stop screw.
