Clamp bolts
Vortex
Sprint
Bolt the brackets to the seat
shell as shown.
M5 x16mm bolt
Alloy washer
Seat shell
Adventure (Large hard-shell
is interchangeable with the
mesh seat if this bracket
position is used)

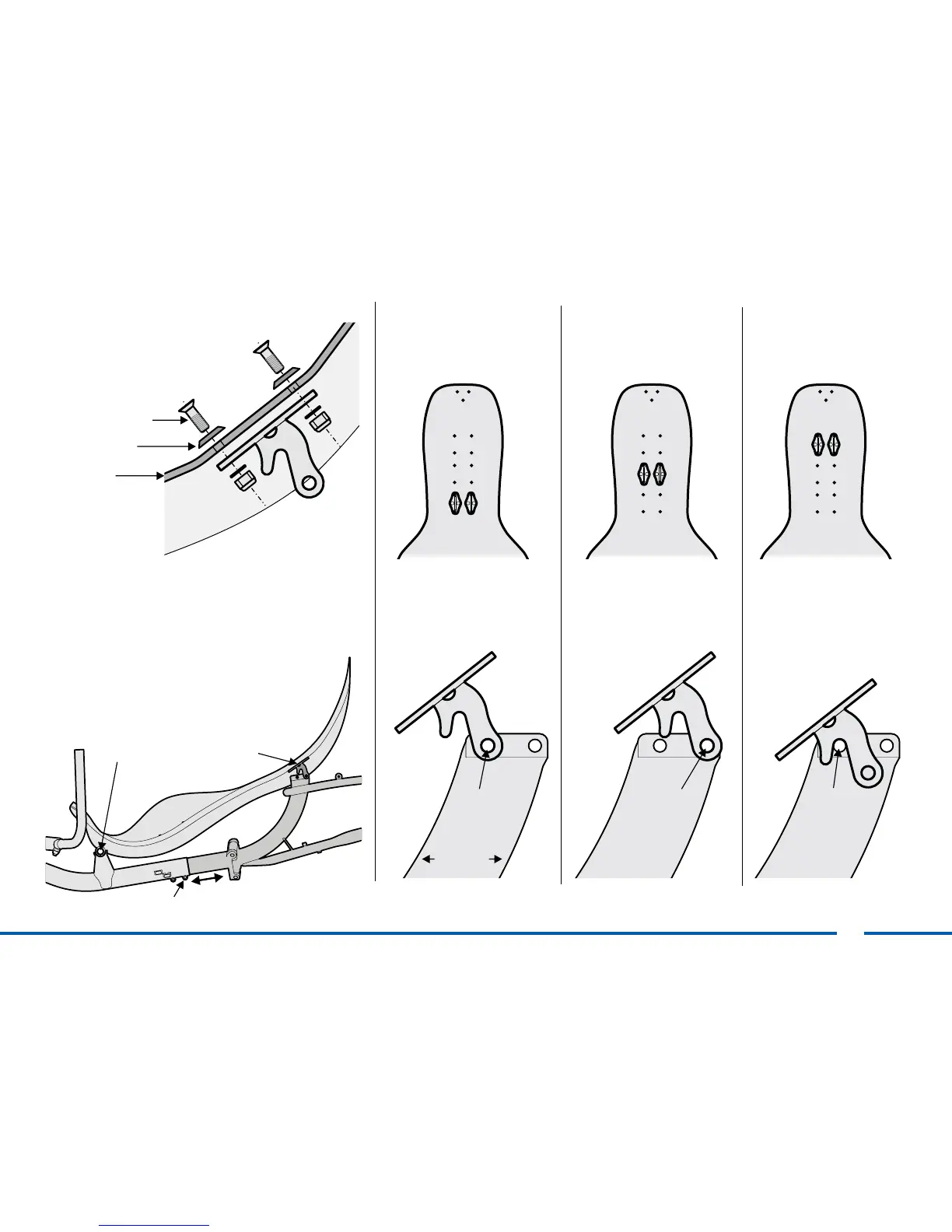

Assemble the seat as shown below and attach the
seat to the frame at the front mount. Check that the
bracket is aligned with the holes in the backend as
shown right. If it does not line up correctly you will
need to loosen the backend clamp bolts and slide
the backend in or out until it is correct.
Line up the
holes here
Line up the
holes here
Line up the
holes here
Front. Rear
BracketFront mount
Clamp bolts
