DATE
7/9/01
DESCRIPTION

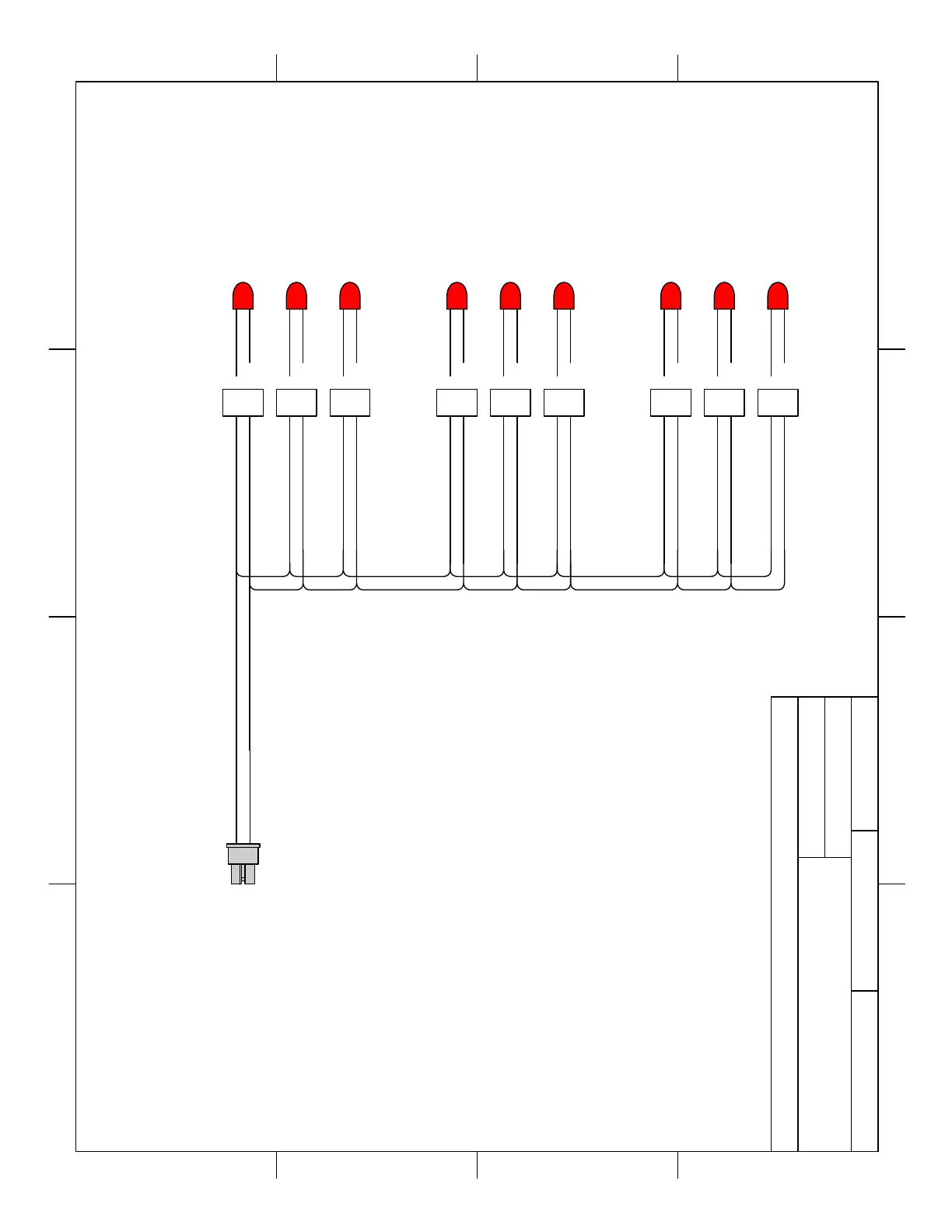

#RC2558X - FLASHING LED HARNESS
DRAWN BY
MMARTIN
FILENAME
RC.VSD
PAGE
18 OF 21
REVISED
3/15/02
TITLE
ROUND CRANE
1 2
2 PIN JST HOUSING #8121 WITH JST CONTACT #8116
1 2
2 PIN JST HOUSING #8121 WITH JST CONTACT #8116
1 2
2 PIN JST HOUSING #8121 WITH JST CONTACT #8116
1 2
2 PIN JST HOUSING #8121 WITH JST CONTACT #8116
1 2
2 PIN JST HOUSING #8121 WITH JST CONTACT #8116
1 2
2 PIN JST HOUSING #8121 WITH JST CONTACT #8116
1 2
2 PIN JST HOUSING #8121 WITH JST CONTACT #8116
1 2
2 PIN JST HOUSING #8121 WITH JST CONTACT #8116
1 2
2 PIN JST HOUSING #8121 WITH JST CONTACT #8116
red
green
red
green
red
green
red
green
red
green
red
green
red
green
red
green
red
green
D C
B A
4321
D C
B A
4321
4 "
1-1/2 " 1-1/2 "
4 "
1-1/2 " 1-1/2 "
4 "
1-1/2 " 1-1/2 "
#8212- LED RED FLASHING #8212- LED RED FLASHING #8212- LED RED FLASHING #8212- LED RED FLASHING #8212- LED RED FLASHING #8212- LED RED FLASHING #8212- LED RED FLASHING #8212- LED RED FLASHING #8212- LED RED FLASHING
To Solenoid Assembly
#8497- 2 PIN MOLEX MICRO-FIT RECEPTACLE #8496 - MOLEX MICRO- FIT FEMALE TERMINAL
1 2
red green
* NOTE: ADD 3" OF 1/8" BLACK SHRINK TUBE #8381
