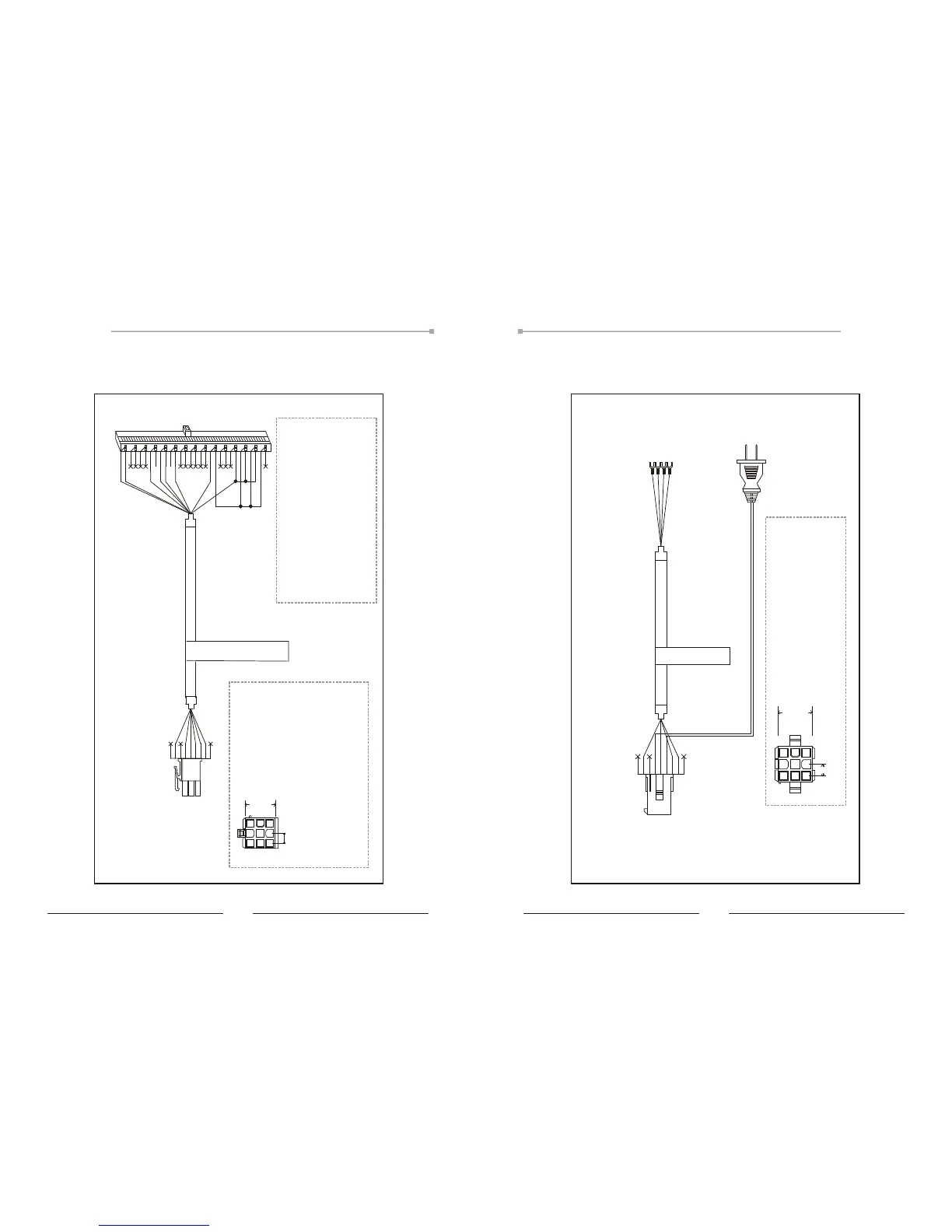

WEL-RM017
2464 22AWG 8C CABLE
HORN-30
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
PIN 2- RED....................................................I-ENABLE-L
PIN 4- BLACK.............................................115VAC-HOT
PIN 5- GREEN.....................................EARTH-GROUND
PIN 6- WHITE & YELLOW.................115VAC-NEUTRAL
PIN 7- BLUE.....................................CREDIT-RELAY-NO
PIN 8- PURPLE & BROWN...........CREDIT-RELAY-COM
A6&A7 AC110V 5V INHIBIT
#WEL-RM017
*
*
+AMP
.551 inch
or 14mm
.165inch or 4.2mm
123
456
789
AMP 172340-1
BACK VIEW
1
2
3
4
5
6
7
8
9
AMP 172340-1
PIN 1- PURPLE.........................CREDIT-RELAY-COM
PIN 4- WHITE............115VAC-NEUTRAL(POWER IN)
PIN 5- YELLOW..............................NEUTRAL-INHIBIT
PIN 10- BROWN......................................................GND
PIN 16- BLUE.................................CREDIT-RELAY-NO
PIN 20- BLACK.....................115VAC-HOT(POWER IN)
PIN 21- GREEN..................................EARTH-GROUND
PIN 27.& 28. & 29- RED..............................I-ENABLE-L
PIN 13. & 14. & 15. & 25- BLACK...............I-ENABLE-H
(5V Enable / 117V AC)
A7 / V7 A7 / V7
Bill Acceptor Bill Acceptor
9
www.ictgroup.com.tw
10
www.ictgroup.com.tw
2464 22 AWG 6C CABLE
(KST)
(SHBM1-4)
WEL-RM018
AC
A6&A7 AC110V 5V INHIBIT
#WEL-RM018
1
2
3
4
5
6
7
8
9
AMP 172332-1
K
+AMP
.551 inch or 14mm
.165inch or 4.2mm
1 2 3
4 5 6
7 8 9
AMP 172332-1 BACK VIEW
202
202
202
202
PIN 2- RED.............................................I-ENABLE-L
PIN 4- BLACK..................115VAC-HOT(POWER-IN)
PIN 5- GREEN..............................EARTH-GROUND
PIN 6- BLACK........115VAC-NEUTRAL(POWER-IN)
PIN 7- BLUE..............................CREDIT-RELAY-NO
PIN 8- PURPLE......................CREDIT-RELAY-COM
(5V Enable / 117V AC)
Figure.7 Figure.8
