To download and upgrade the software to A7/V7 Series, the
programmer (FP-001) is needed. Please contact ICT to purchase
FP-001 and refer to FP-001 user guide for software download and
upgrade information.

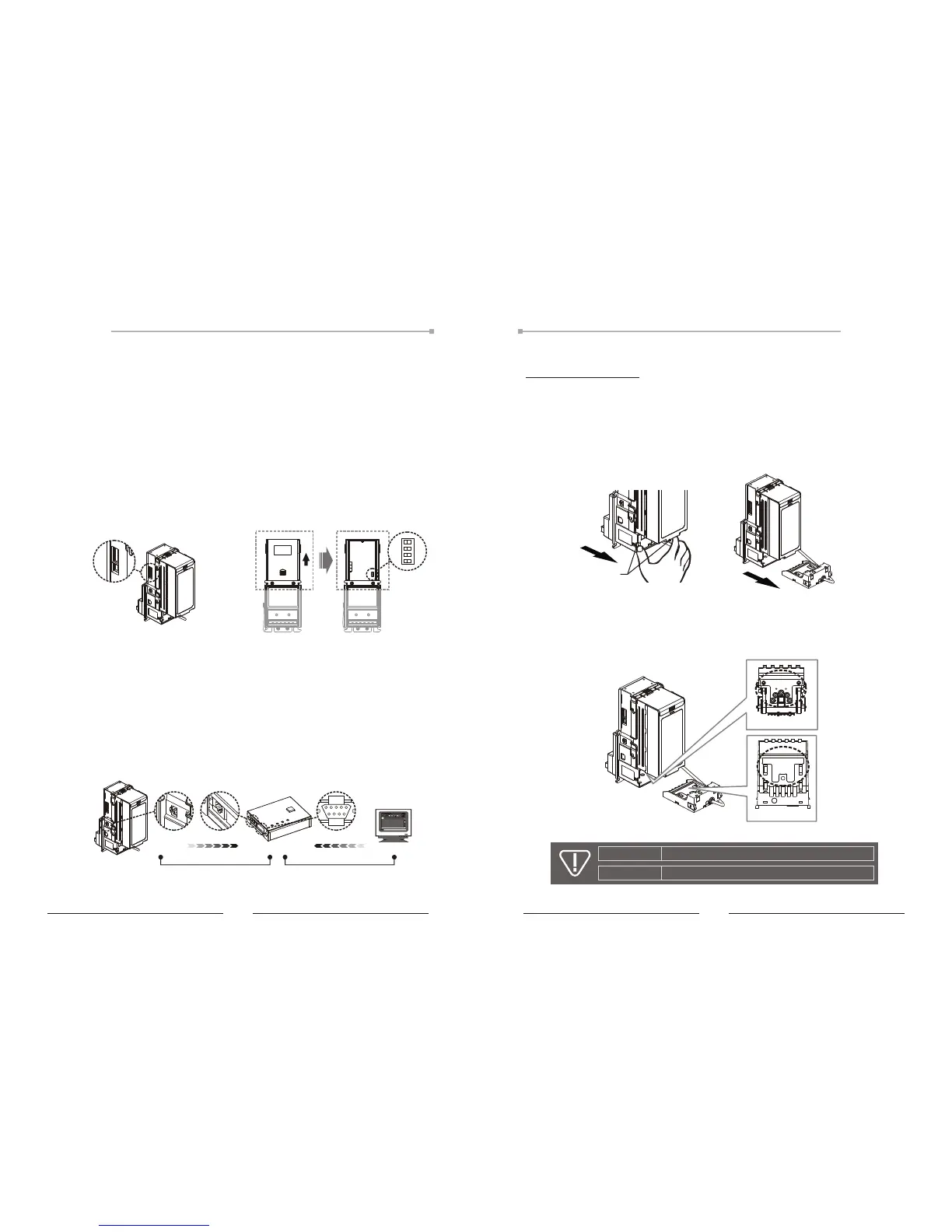

There are two serial DIP switches which are located on the side of
A7/V7 Series (as figure 21). According to different currencies which
are used by users, DIP switch settings could be varied to fit users’
need. Besides, there’s also a serial DIP switches on CPU board
inside of A7/V7 Series for interface settings.(as figure 21)
Please refer to “A7/V7 Series DIP Switch Setting” Guide in the
package for more detail.
A7/V7
FP-001
PC
Power must be applied to BA AFTER connecting.
To make sure the bill acceptor always works smoothly, please clean the
internal parts regularly.
Buttons
Sensors
Sensors
5-2. DIP Switch Setting
5-3. Software Download and Upgrade
Figure.21 Figure.22
Figure.23
Figure.24
Figure.25
6. Maintenance
To clean the internal parts:
1. Press the buttons on the sides of bill path unit and pull the unit out
(as figure 24).
2. Use a soft, dry cloth or towel to clean the bill path and sensors
(as figure 25).
A7 / V7 A7 / V7
Bill Acceptor Bill Acceptor
23
www.ictgroup.com.tw
24
www.ictgroup.com.tw
Mild, non-abrasive, soap water.
Organic solvent , Alcohol, Volatility liquid
OK
DO NOT USE
