iDataLink maestro Rr Quick Start Guide

ADS-RR(SR)-FO2-DS maestro.idatalink.com
Ford F150 2013-2014
Automotive Data Solutions Inc. © 2015
3

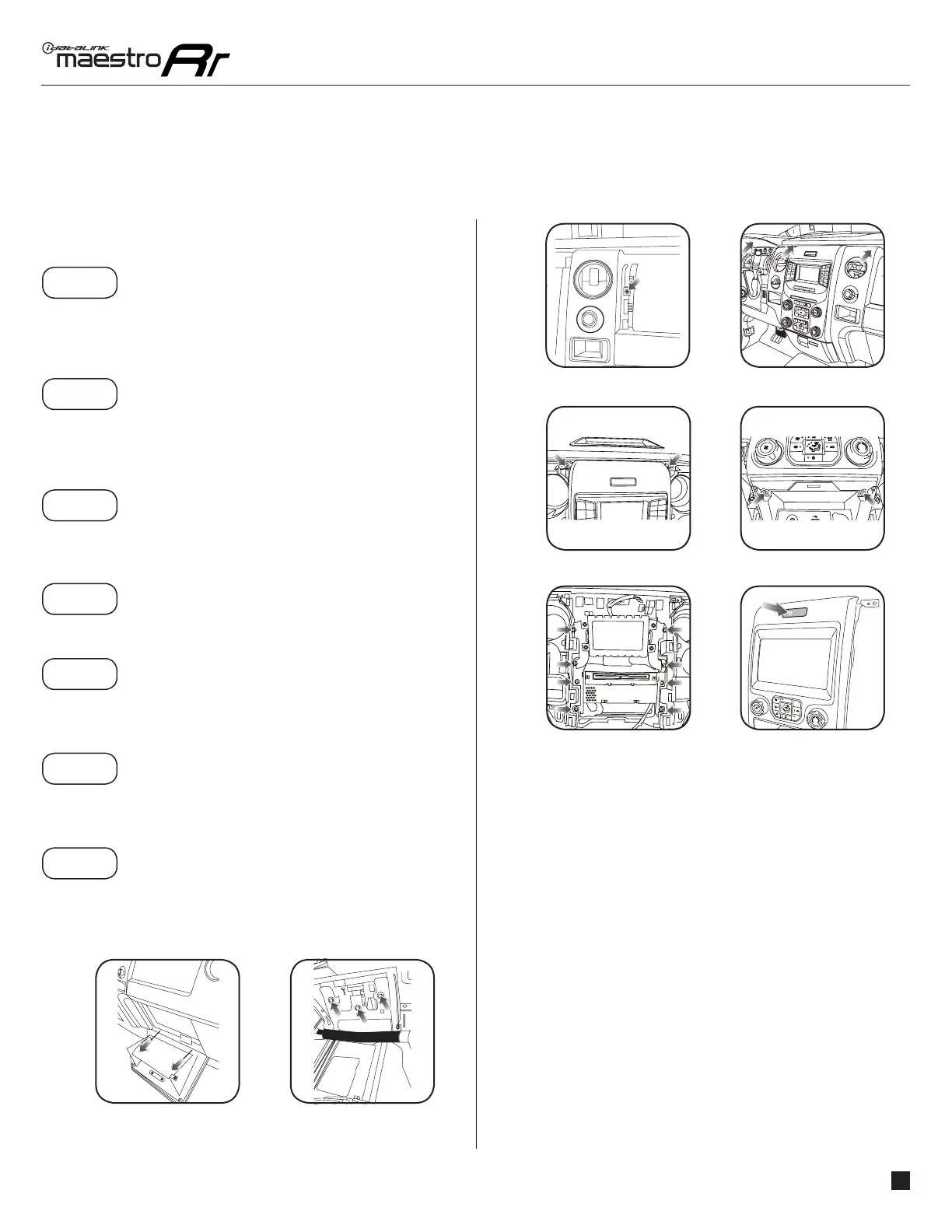

INSTALLATION INSTRUCTIONS
VEHICLE DASH DISASSEMBLY
STEP 1
• On passenger side of the vehicle, open the glove box and
push the side tabs toward each other to release glove box.
Extract (3) 8mm bolts to release the airbag. (1.1) (1.2)
STEP 2
• Without disconnecting the airbag, push it out far enough to
expose the copper-plated 7mm screw on the left side of the
airbag and extract it. (1.3)
STEP 3
• Remove the instrument cluster cover by removing (2) 7mm
screws. (1.4)
STEP 4
• Remove both side vent covers. (1.4)
STEP 5
• Remove the radio bezel by extracting (2) 7mm screws from
the top and (2) 7mm screws from the bottom. (1.5) (1.6)
STEP 6
• Remove (8) 7mm screws from the factory display and radio;
Remove both. (1.7)
STEP 7
• Remove the traction control button from the factory radio
bezel; It will be relocated to the K150 dash kit. (1.8)
1
Fig. 1.3
Fig. 1.5
Fig. 1.4
Fig. 1.6
Fig. 1.7
Fig. 1.8
Fig. 1.1 Fig. 1.2
A/C
MAX
A/C
OFF
PASS
AIRBAG
OFF
Fig. 1.3
Fig. 1.5
Fig. 1.4
Fig. 1.6
Fig. 1.7
Fig. 1.8
Fig. 1.1 Fig. 1.2
A/C
MAX
A/C
OFF
PASS
AIRBAG
OFF
