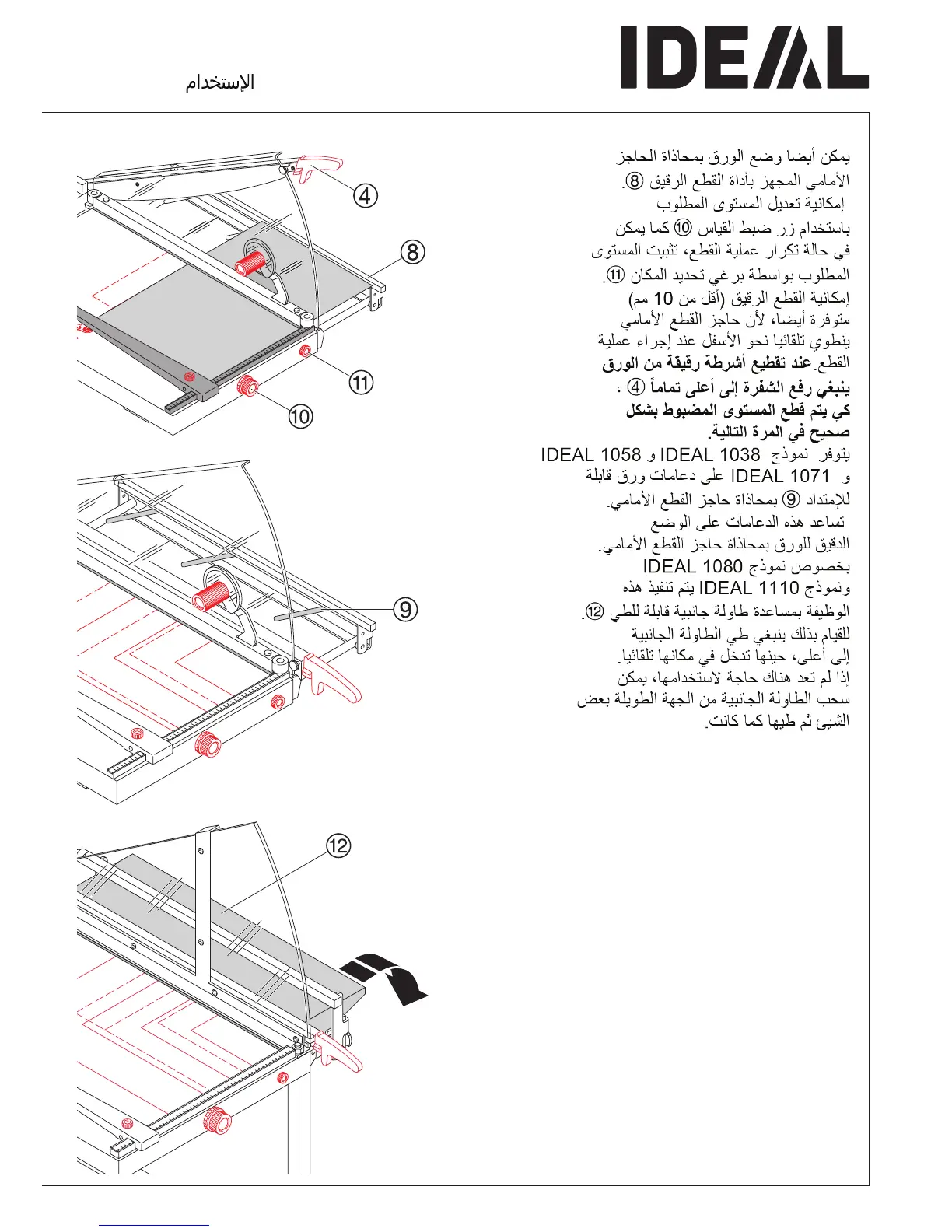

The cutting measurement can also be determi-
ned using the frontgauge with narrow strip cut-
ting device
H
. The desired measurement can
be set exactly with the calibrated knob
J
and can be locked into position with the locking
knob
K
for repeat cuts. Narrow cuts (smaller
than 10 mm) are possible as the frontgauge
will automatically move to the side while cutting.
The knife must be in the top position
D
when cutting narrow strips of paper to
ensure that the next measurement is
reached exactly.
Models IDEAL 1038, IDEAL 1058 and IDEAL
1071 are equipped with extendable paper
supports
I
on the frontgauge. They insure
precise positioning of the paper against the
frontgauge. A collapsible extension table
L
replaces these paper supports on models
IDEAL 1080 and IDEAL 1110. Raise the table
into place and it automatically clicks into place.
When it is no longer needed, the table can be
pulled out and folded down.
•
