- 8 -
IDEAL 1038 • IDEAL 1058 • IDEAL 1071 • IDEAL 1080 • IDEAL 1110
IDEAL 1080
IDEAL 1110
A
6
A
5
A4
A3
8
"x
5"
1
0
x8"
1
3"x8"

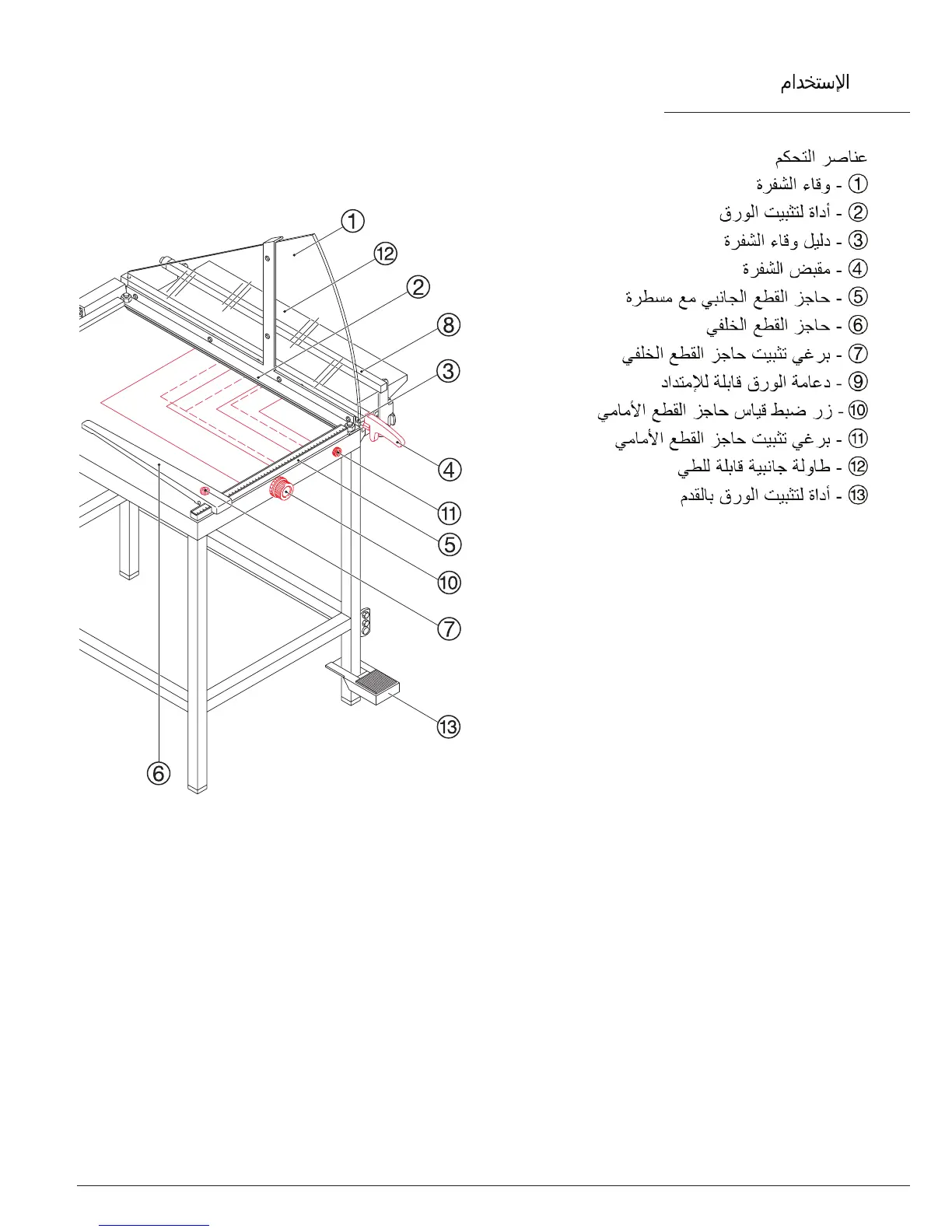

Operating elements
A
- Knife guard
B
- Paper clamp
C
- Knife guide
D
- Knife carrier
E
- Side lay with measuring scale
F
- Backgauge
G
- Locking screw for backgauge
H
- Frontgauge
I
- Extendable paper supports
J
- Calibrated knob for frontgauge
K
- Locking knob for frontgauge
L
- Collapsible extension table
M
- Foot clamp
•
Operation
•
•
