IDEAL 5009-1 - Operation; Starting the Machine

- 18 -
IDEAL 5009-2; IDEAL 5009-3
A
E
D
C
B
A
Starting the machine
Grid (A) must be closed.
•
Emergency-stop (A) pulled out.
•
Main switch (B) to position "I".
•
Turn key switch © standby (C) illuminates.
•
Press the black button (E)
© conveyor belt is running.

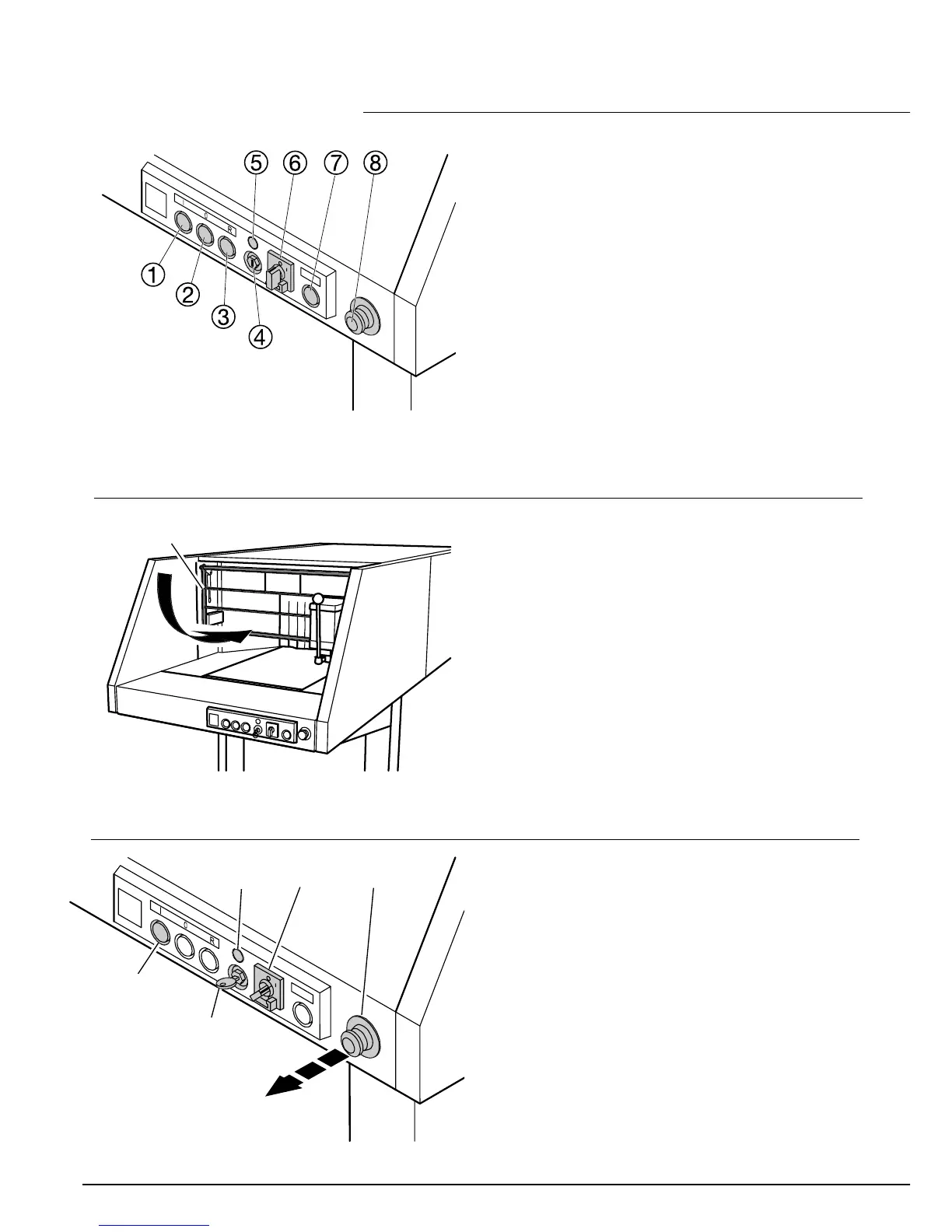

Operating elements
A
- Start
B
- Stop, light for "door open" and "grid
open"
C
- Reverse switch, lamp showing "bag full"
D
- Key switch
E
- Standby
F
- Mains switch
G
- Temperature indicator / yellow pilot light
H
- Emergency-stop
Bedienung
•
Operation
•
