STEP 8

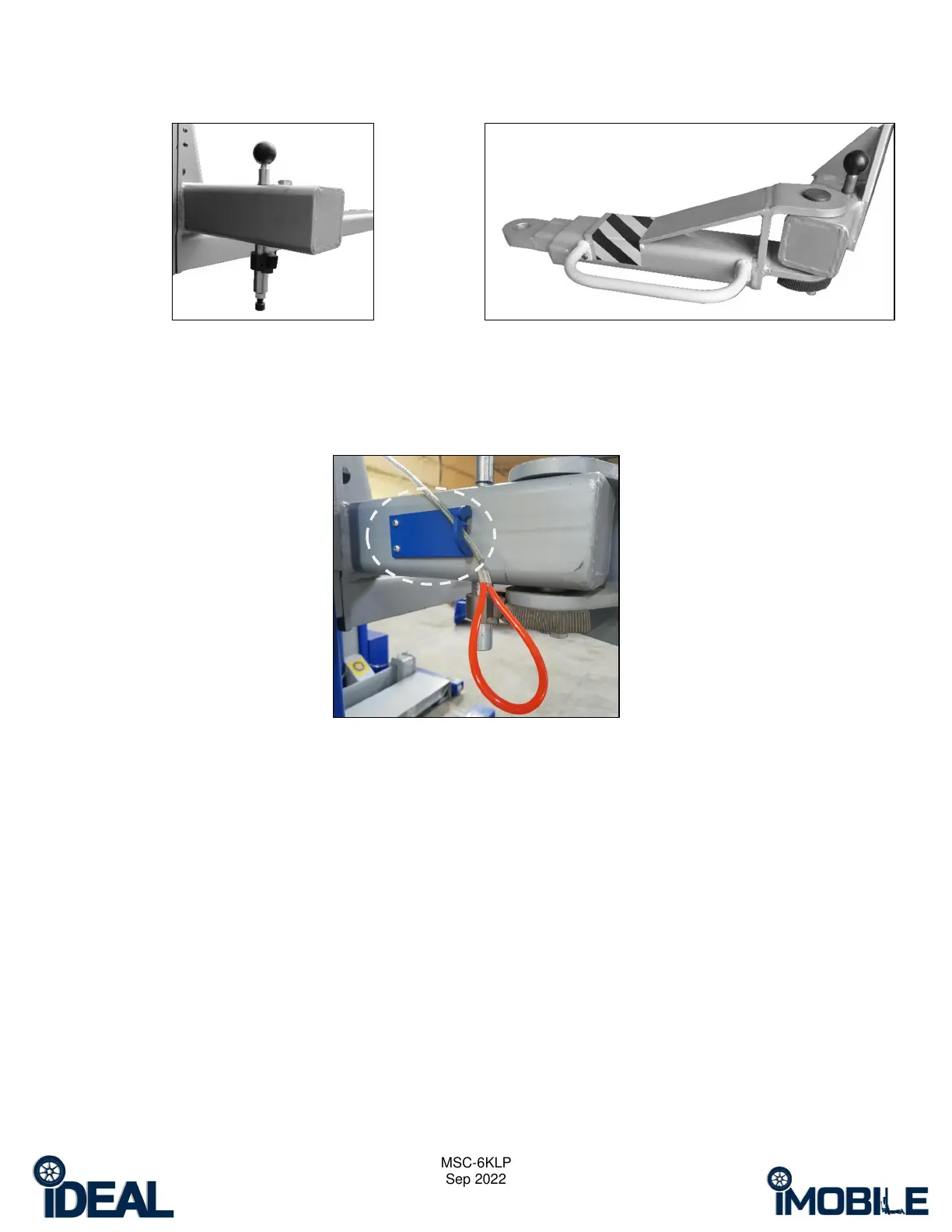

Assemble the main side arm restraints for column side & swing arms to lifting frame. (Figs 26 & 27)
Fig. 26 Fig. 27
STEP 9
Attach latch release cable bracket to carriage (Fig. 28). Ensure latch release cable is routed thru hole
in bracket.
Fig. 28
STEP 10
Remove the plastic fill cap from the topside of the reservoir and fill the reservoir with approx. 12
quarts of Non-Detergent / Non-Foaming Hydraulic Oil - SAE-10, AW 32 or equivalent. Add hydraulic
oil to the fill line on the front side of reservoir tank. (See Fig 29 next page)
STEP 11
Connect 115VAC electrical power to the Power Unit’s three prong electrical plug. Ensure to use
proper size extension cord and plug type for 20 Amps. Also ensure power supply incorporates 20
Amp breaker service for safety. If there is any question on the power source requirements, please
consult an electrician.
The MSC-6KLP Lift is now ready for Operation.
(See Operation Instructions in following Pages)
