The MSC-6KLP is a low-profile mobile single-column lift designed for automotive maintenance and repair, offering a robust solution for lifting vehicles in various settings. Its mobile design allows for flexibility in workshop layout, making it suitable for spaces where permanent installations are not feasible or desired.

Function Description

The MSC-6KLP is a mobile single-column lift that provides a safe and efficient way to raise vehicles for inspection, maintenance, and repair. Its "Low Profile" design ensures that it can accommodate a wide range of vehicles, including those with lower ground clearance. The lift operates by using a hydraulic system to raise and lower the lifting frame, which is equipped with adjustable swing arms and swivel pads to securely support the vehicle. The mobile nature of the lift, facilitated by a pallet jack assembly, allows it to be easily moved and positioned as needed within a garage or service bay.

Important Technical Specifications

The MSC-6KLP boasts several key technical specifications that highlight its capabilities:

Capacity: 6,000 lbs. This substantial capacity allows it to handle a variety of passenger cars and light trucks.
Width Overall: 45-3/16".
Height Overall: 102-3/8".
Length Overall: 101-9/16".
Lift Rise Height: 72". This provides ample working space underneath the vehicle.
Drive Over Base Ramp Height: 3-15/16". The low profile of the ramp facilitates easy drive-over for vehicles.
Swivel Pad Height - Min/Max: 3-7/16" - 6-5/16". These adjustable pads ensure secure contact with the vehicle's frame.
Main Side Swing Arms - Min/Max: 19-11/16" - 26".
Off Side Swing Arms - Min/Max: 24-5/8" - 34". The varying lengths of the swing arms allow for versatile vehicle positioning.
Ship Weight: 1,850 lbs.
Power: 115 VAC, 1PH, 20 Amp. This indicates standard electrical requirements for operation.

The lift's design incorporates a single column that houses the hydraulic cylinder and lifting mechanism, providing a compact footprint. The base frame is designed for stability and includes features for mobility, such as a pallet jack assembly for easy relocation.

Usage Features

The MSC-6KLP is designed with user convenience and safety in mind, offering several practical usage features:

Mobility: The lift is equipped with a pallet jack assembly, allowing it to be easily moved around a garage or service bay. This is particularly useful for optimizing workspace and accommodating different vehicle service needs.
Low Profile Design: The low drive-over base ramp height (3-15/16") makes it easy for vehicles with low ground clearance to access the lift without obstruction.
Adjustable Swing Arms: The main and off-side swing arms are adjustable, providing flexibility in positioning the lift pads to securely support various vehicle frames.
Safety Features: The manual emphasizes several safety precautions, including the importance of proper vehicle positioning, ensuring the lift is on a flat concrete surface, and regularly checking for any damage or malfunctions. It also highlights the need for trained technicians to operate the lift.
Simple Operation: The operation instructions detail a straightforward process for raising and lowering vehicles, including the use of a power switch and a release handle for controlled descent.
Site Selection: The manual provides guidelines for selecting an appropriate indoor use only site, emphasizing a flat, level concrete surface and adequate working area around the lift.

Maintenance Features

To ensure longevity and safe operation, the MSC-6KLP incorporates features that facilitate easy maintenance:

Hydraulic Fluid Management: The lift uses hydraulic fluid, and the manual provides clear instructions for checking and maintaining the fluid level. It specifies the use of Non-Detergent / Non-Foaming Hydraulic Oil - SAE-10, AW 32 or equivalent.
Regular Inspections: The manual stresses the importance of routine inspections for loose screws, misalignment, worn parts, damaged electrical wiring, and hoses. This proactive approach helps identify and address potential issues before they escalate.
Cleaning: Recommendations for daily cleaning include using compressed air or vacuum to remove dirt and debris, and a detergent or mild solvent to remove oil and grease from the unit.
Lubrication: The hydraulic oil is recommended to be replaced every two years, and the inner corners of the column and lift arms should be re-greased with general-purpose axle grease every year or as needed.
Troubleshooting Guide: A comprehensive troubleshooting guide is included to help users diagnose and resolve common issues related to the motor, hydraulic system, and lift operation. This guide covers problems such as the motor not running, lift not raising, and oil leaks.

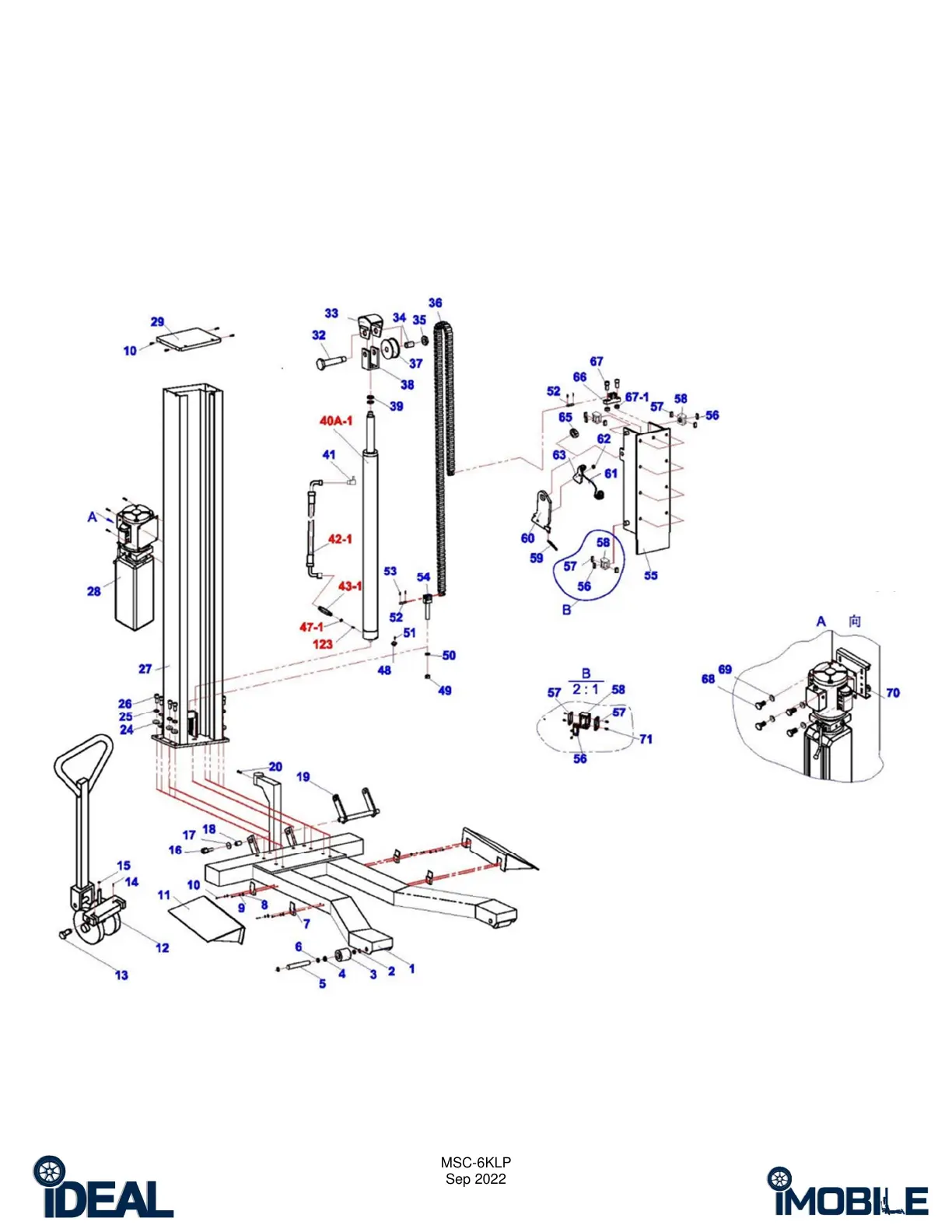

Parts List: An exploded view and detailed parts list are provided, making it easy to identify and order replacement components when necessary. This ensures that repairs can be performed efficiently, minimizing downtime.

The MSC-6KLP is a well-designed and versatile mobile single-column lift that combines robust technical specifications with user-friendly operation and straightforward maintenance requirements, making it a valuable asset for automotive service professionals.
