Innovative DisplayWorks, Inc.

Instruction Manual

16 17

G-26c/GCG-26c

EMS

Sensor

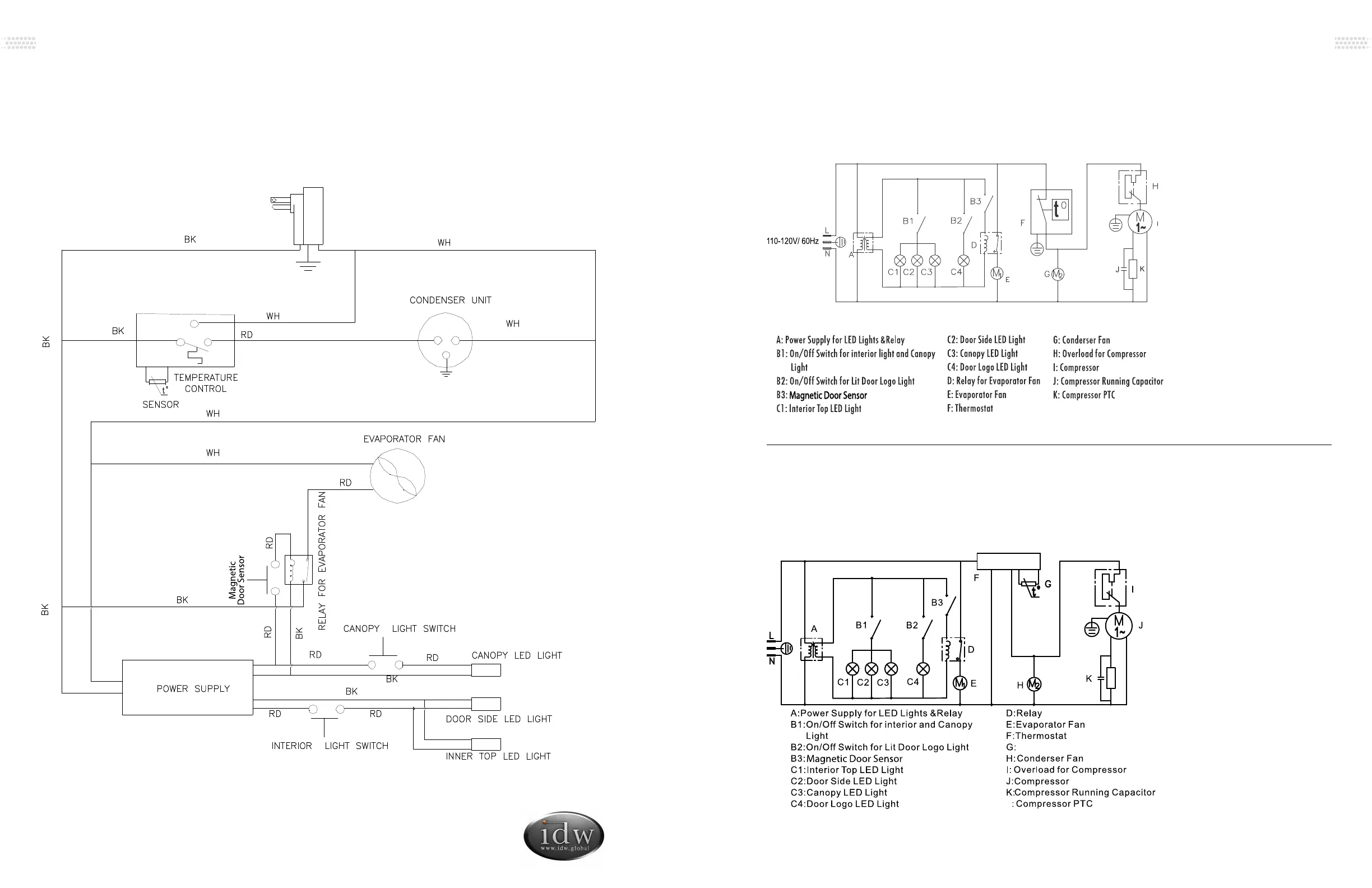

CIRCUIT DIAGRAM (GCG-26C (K))

FOR MODELS: GCG-26-CB934B , GCG-26-C2934B, GCG-26-CP934B, GCG-26-CW934B, GCG-26-CW2934B,

GCG-26-CZ934B, GCG-26-CZ2934B, GCG-26-CA934B, GCG-26-CP2934B, GCG-26-CA2934B, GCG-26-C934B-HC,

GCG-26-C2934B-HC, GCG-26-CP934B-HC, GCG-26-CA934B-HC, GCG-26-CP2934B-HC, GCG-26-CA2934B-HC,

GCG-26-CW2934B-HC, GCG-26-CZ934B-HC, GCG-26-CZ2934B-HC

CIRCUIT DIAGRAM (GCG-26C)

FOR MODELS: GCG-26-C334B, GCG-26-CB334B , GCG-26-C2334B, GCG-26-CP334B, GCG-26-CW334B,

GCG-26-CW2334B, GCG-26-CZ334B, GCG-26-CZ2334B, GCG-26-CA334B, GCG-26-C334B-HC, GCG-26-C2334B-HC,

GCG-26-CP334B-HC, GCG-26-CA334B-HC

ELECTRICAL WIRING DIAGRAM (G-26C (K))

FOR MODELS: G-26-CB934B, G-26-CP934B, G-26-CW934B, G-26-CZ934B, G-26-C934B-HC, G-26-CP934B-HC,

G-26-CZ934B-HC, G-26-CB934B-HC, G-26-CW934B-HC
