5.4 Shunting a Normally Closed Zone
Use the following steps to employ the keypad to shunt a normally
closed zone:
1. Connect the blue wire (common) to the c ommon c onnection
on the door position switch.
2. Connect the green wire (normally open) to the normally
closed connection on the door position switch.

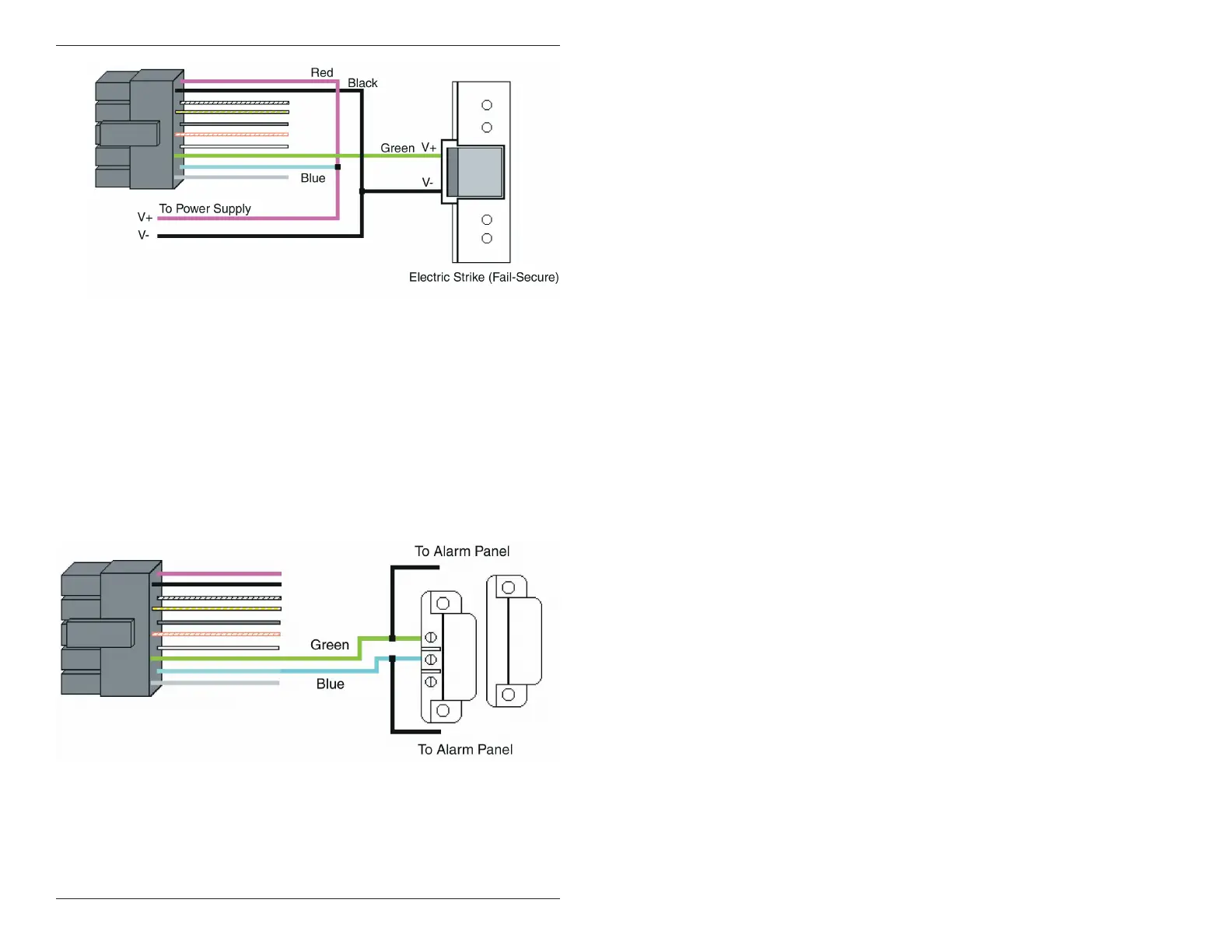

Figure 6 Wiring the Keypad to Electric Strike
Figure 7 Shunting a Normally Closed Zone
IEI 212eM/242eM Standalone Installation/Programming Manual
10 Document # 6174000, Rev. 1.1
