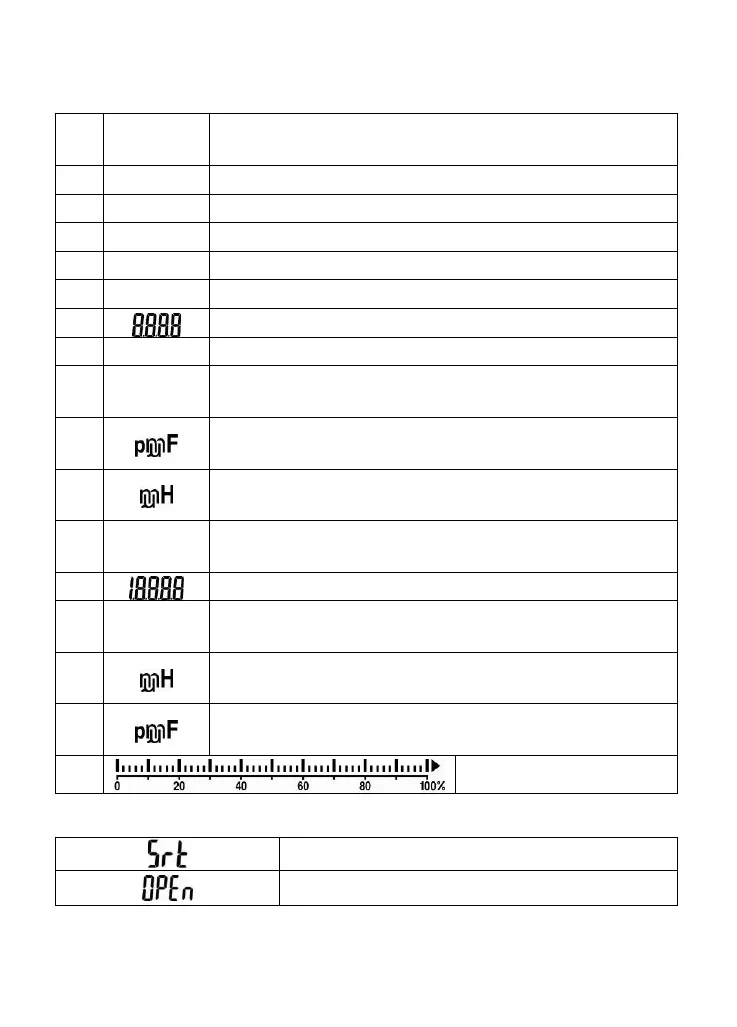

IET Labs DE-5000 User Manual

- 11 -
14.
D/Q/Θ
Dissipation factor, Quality factor or Phase angle is
active for L/C measurement mode
15.
Rp
ac Resistance in parallel mode is active
16.
Cal
Open/Short calibration mode
17.
HOLD
Data Hold
18.
APO
Auto power off mode
19.
ESR
Series equivalent resistance mode
20.
Secondary Display
21.
°
Phase angle
22.
MkΩ
Unit for Resistance (Ω, kΩ and MΩ )
– on secondary display
23.
Unit for Capacitance ( pF, nF, µF and mF )
– on secondary display
24.
Unit for Inductance ( µH, mH and H)
– on secondary display
25.
%
The percentage display in relative mode
– on secondary display
26.
Primary Display
27.
MkΩ
Unit for Resistance ( Ω, kΩ and MΩ )
– on primary display
28.
Unit for Inductance ( µH, mH and H)
– on primary display
29.
Unit for Capacitance ( pF, nF, µF and mF )
– on primary display
30. Bar-graph display
Special Indication Characters
Indicates short calibration
Indicates open calibration
