MOUNTING OF VENT KIT
Replace the existing exhaust air director on the back of dryer
with the adapter. Mount vent kit in sideways or upward position
on the back of dryer using the same fasteners (Fig.-4). Direct
other end of hose outside the window.
Fig -4

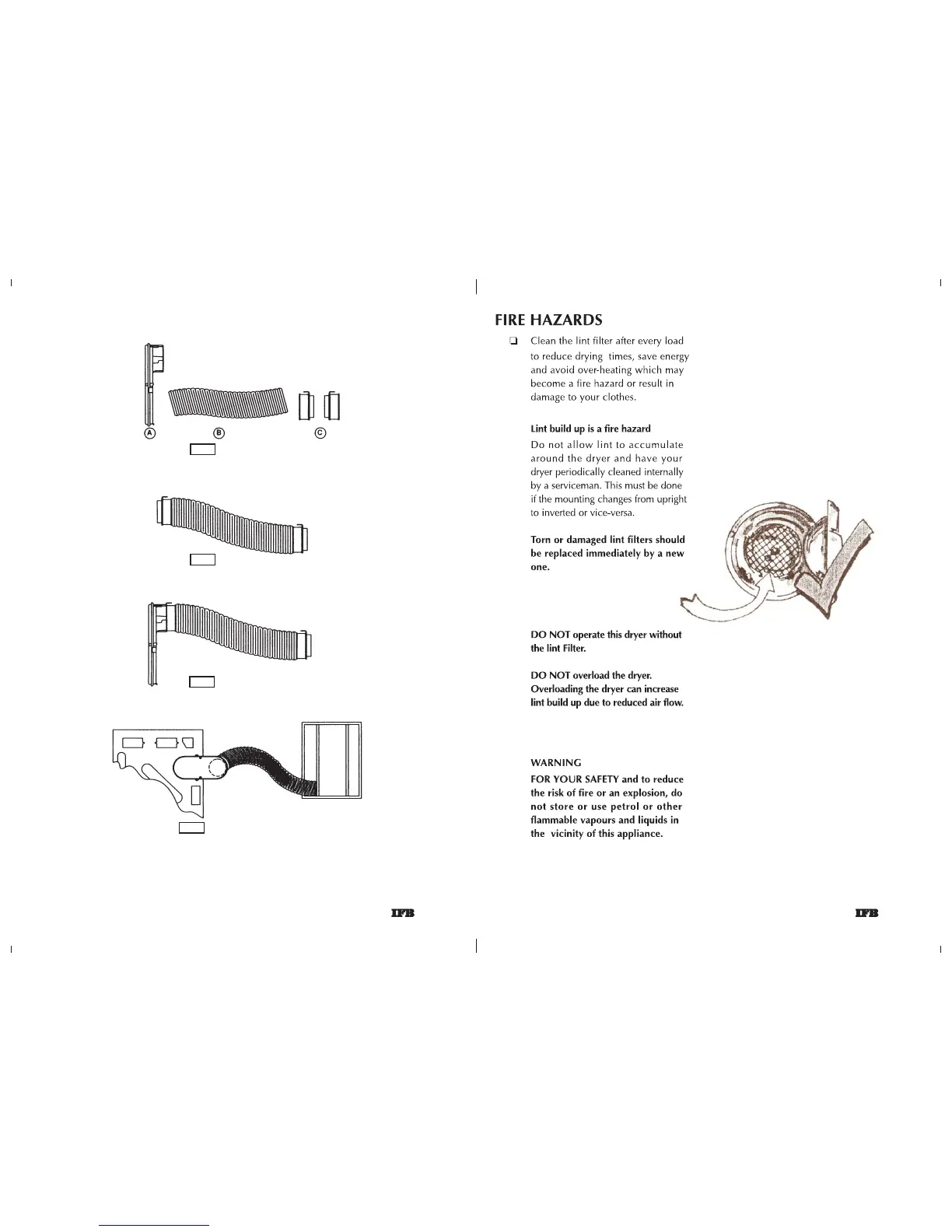

A vent kit is supplied along with accessories which consist of
adapter - A, hose - B, and two connectors - C (Fig -1)
Fig -1
Assemble connectors on both ends of hose by rotating
clockwise direction. (Fig. 2)
Fig -2
Insert one end of hose assembly into the adapter slot and
lock it (Fig. - 3)
Fig -3
