device manual AS-i DP-Gateway

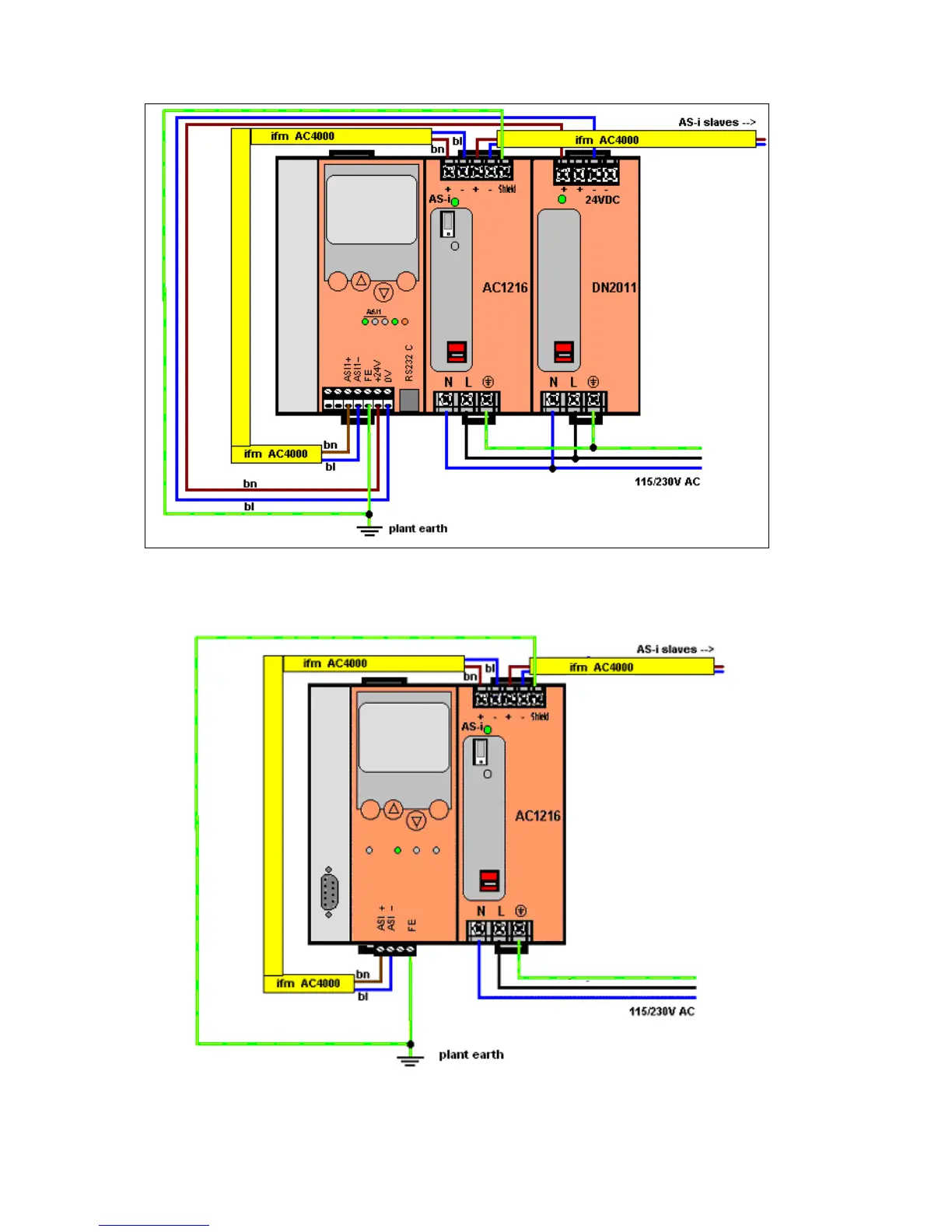

AC1326 wiring example with only one AS-i system; Adherence to codes and guidelines (for
example addition of fuses) is the responsibility of the installer or user. The Profibus connection
required for proper operation is not shown.
AC1325 wiring example with only one AS-i system; Adherence to codes and guidelines (for
example addition of fuses) is the responsibility of the installer or user. The Profibus connection
required for proper operation is not shown.
4-8
