ENGLISH
BEFORE YOU OPERATE THE MONITOR 7
SPECIAL NOTES
L-Brackets and screws are necessary to install an open frame monitor.
The L-Brackets are designed to be mounted to specific wall types and
hardware, in accordance with the installation instructions supplied with the
Mounting Kit.
Using L-Bracket or screws other than those specified in the installation
instructions may damage the monitor.

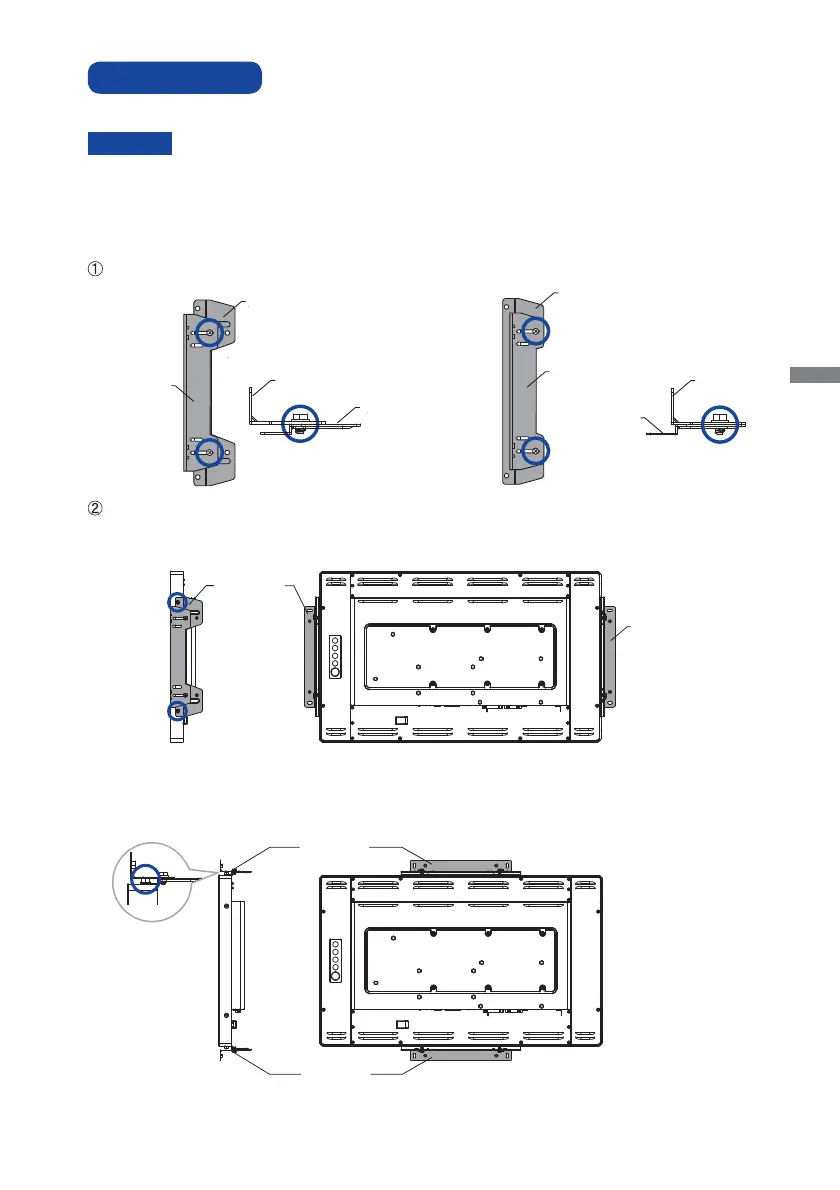

As shown in fi gure below, tighten Bracket A to B using the screws supplied (2pairs of 2 pcs).
Depending on the monitor orientation (portrait or landscape) you choose, mount the L-Brackets
to the left and right hand sides or the upper and lower sides of the monitor and tighten them with
screws supplied (2 pairs of 2 pcs).
CAUTION
Bracket A
Bracket B
Side View
or
Side View
Bracket B
Bracket B
Bracket B
Bracket A
Bracket A
Bracket A
or
Both Sides
Upper and Lower Sides
L-Bracket
L-Bracket
L-Bracket
L-Bracket
To Next Page
