Pilot Operating Handbook for the C42 Series
POH C42 SERIES ISSUE1 (B) REV7 25/04/2020 Page 56 of 73
Rudder
Left 32° ± 2° 210 mm ± 15 mm
Right 32° ± 2° 210 mm ± 15 mm
Measuring point distance from the steering axis: 410 mm
Elevator
Upwards 28° ± 2° 210 mm ± 15 mm
Downwards 20° ± 2° 130 mm ± 15 mm
Measuring point distance from the steering axis: 410 mm
Flettner rudder (C42C & C42CS)
When the elevator neutral: Flettner rudder
0° ± 2° 78 mm ± 3 mm
Flaps
Note : Flap angle is measured from the flap bottom to the
bottom of the wing at the root area (tangent front to rear
spar)
Position I -5°± 1° 27 mm ± 5 mm
Position II +11°± 1° 60 mm ± 5 mm
(take-off/ landing)
Position III +32°± 1° 170 mm ±10 mm
(landing)
Measuring point distance from the steering axis: 310 mm

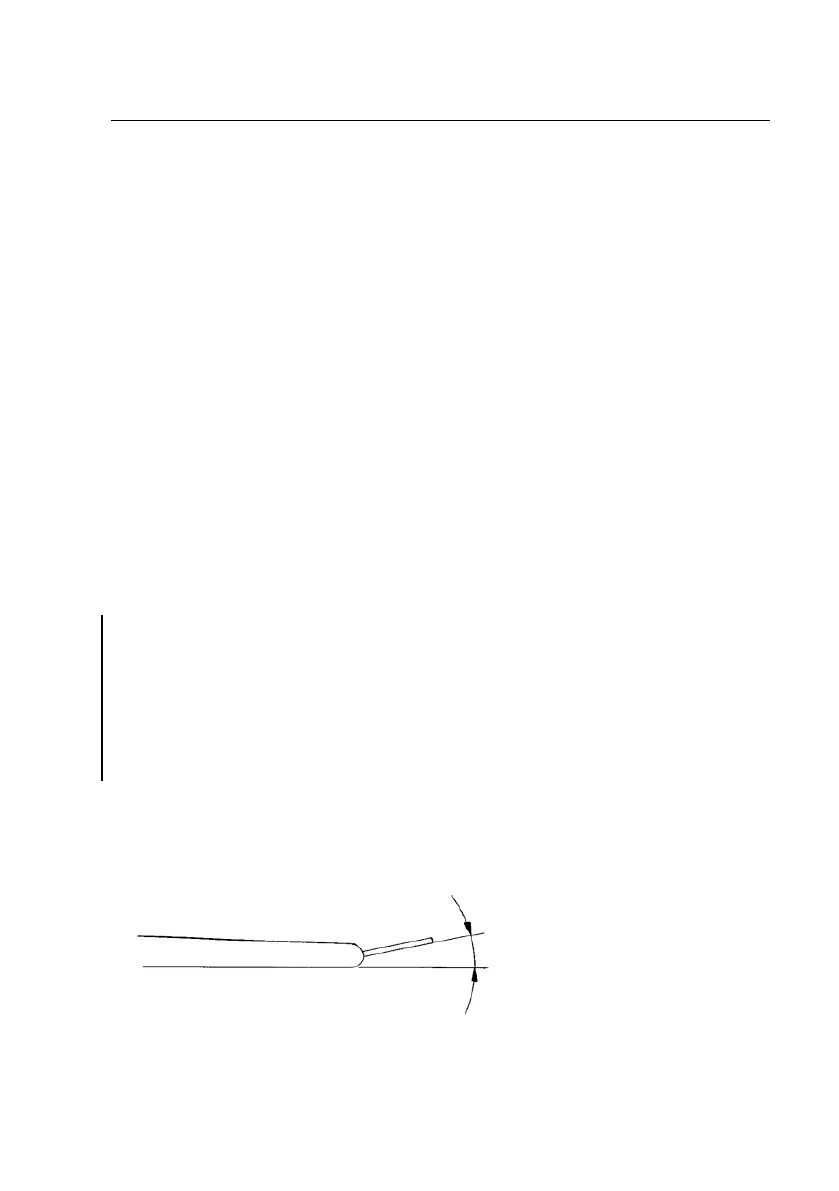

Trim tab
Lever nose-down: trim flap in relation to the rudder area -5°
Note: with mechanically actuated trim flaps do not exceed -5°
upwards.
