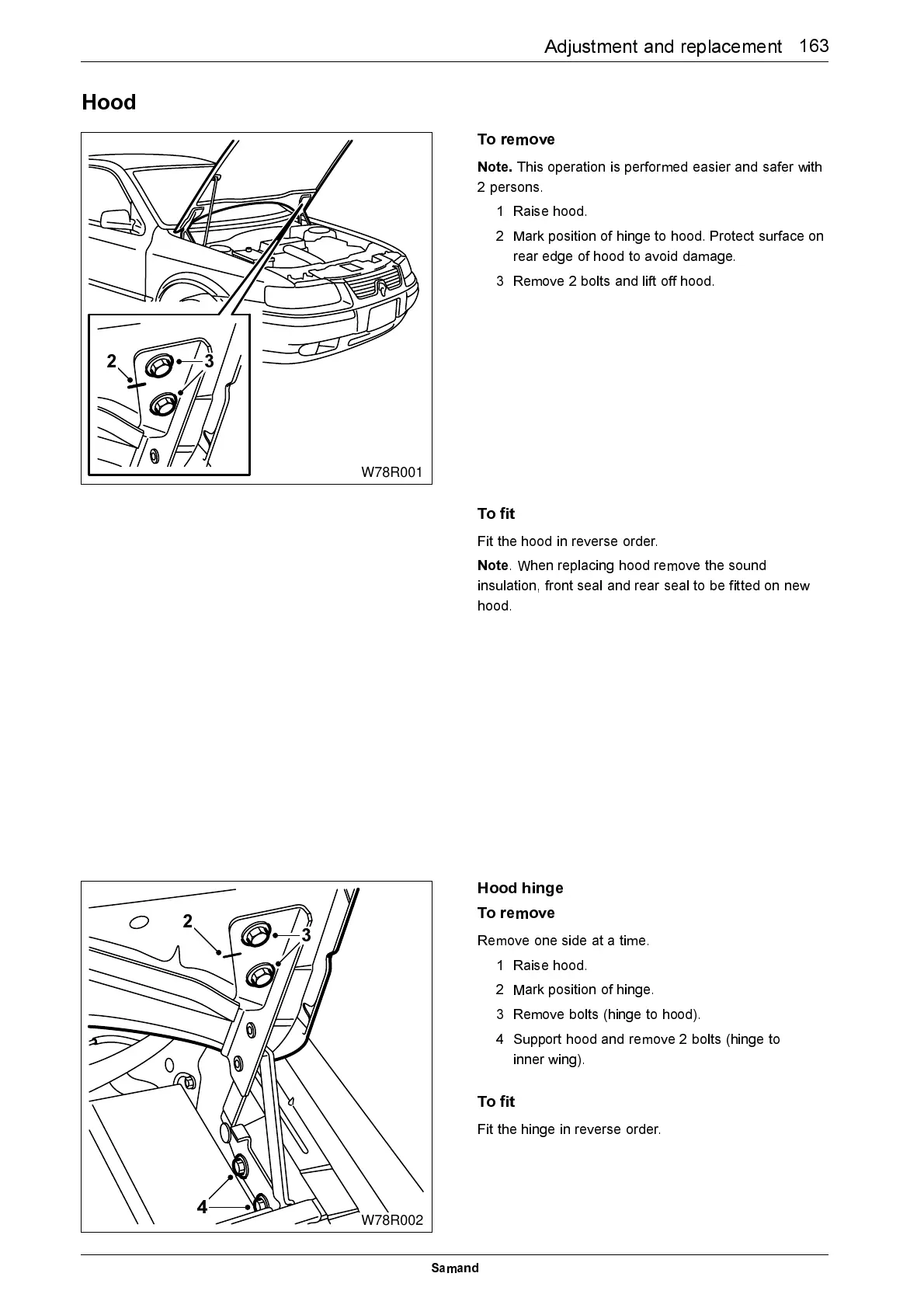

Hood
To remove
Note.
This operation is performed easier and safer with
2 persons.
1 Raise hood.
2 Mark position of hinge to hood. Protect surface on
rear edge of hood to avoid damage.
3 Remove 2 bolts and lift off hood.
To fit
Fit the hood in reverse order.
Note
. When replacing hood remove the sound
insulation, front seal and rear seal to be fitted on new
hood.
Hood hinge
To remove
Remove one side at a time.
1 Raise hood.
2 Mark position of hinge.
3 Remove bolts (hinge to hood).
4 Support hood and remove 2 bolts (hinge to
inner wing).
To fit
Fit the hinge in reverse order.
