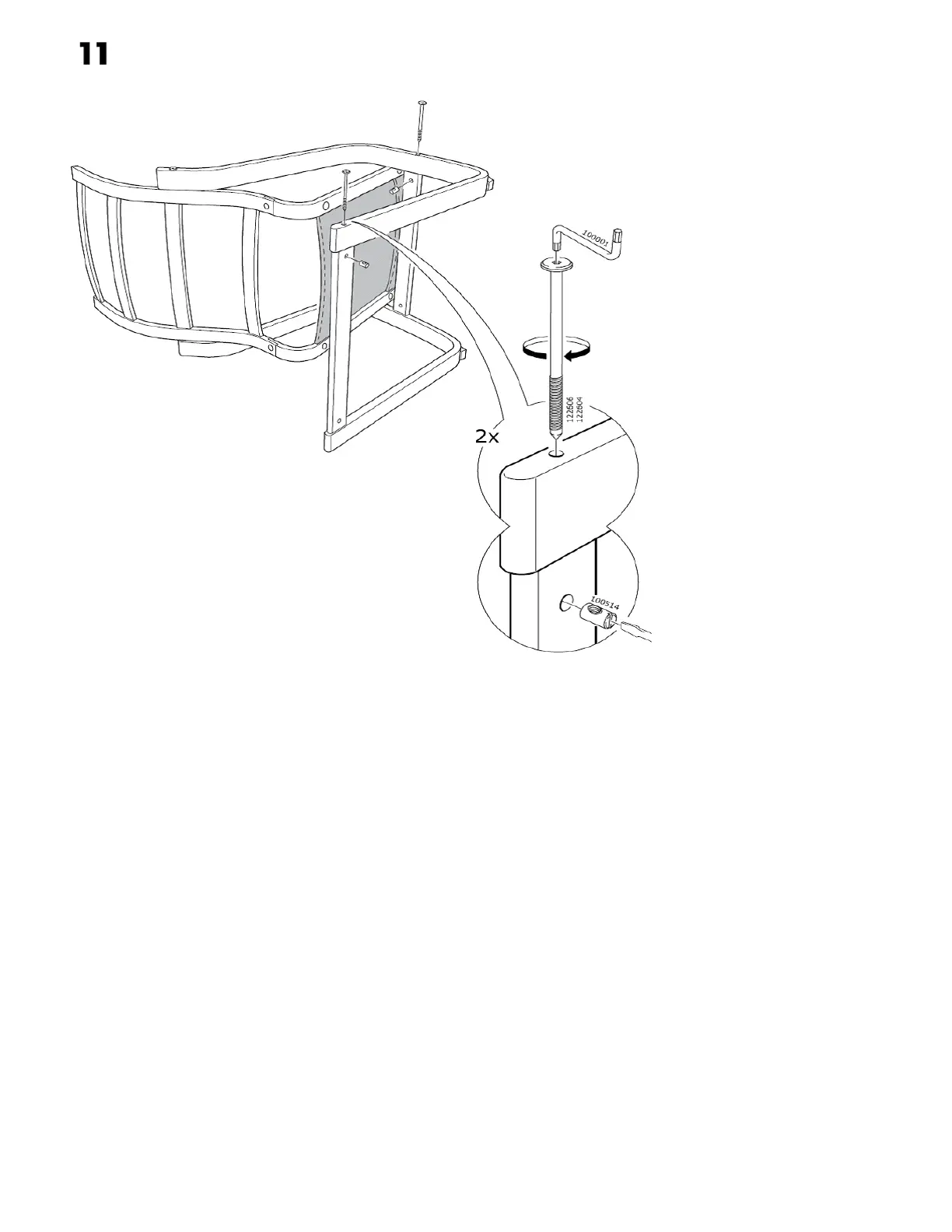

Step 11
A. Insert anchor nut (#100514) into the open hole of the support rail with a flathead screwdriver.
B. Insert long shank screw (#122606) into the hole in the leg. Push screw down until you feel
contact with the anchor nut in the support rail.
C. Turn the anchor nut to align the threads with the long shank screw. Once aligned, tighten
screw by hand, Use Allen wrench (#10001) to tighten.
D. Repeat this procedure for the other support rail.
Note: Be sure to use the long shank screw as shown in picture (i) above.
