According to IEC regulations use for one-
phase connection: mains cable 3 x 4mm²
and for two-phase connection: mains
cable 4 x 2.5mm². Please respect specic
national regulations in the rst priority.
• You must have the means for
disconnection incorporated in the xed
wiring.
• You must have the connection and the
connecting links carried out as shown in
the connection diagram.
• The earth lead is connected to terminal
and must be longer than leads carrying
electric current.
• Secure the connecting cable with cable
clips or clamps.

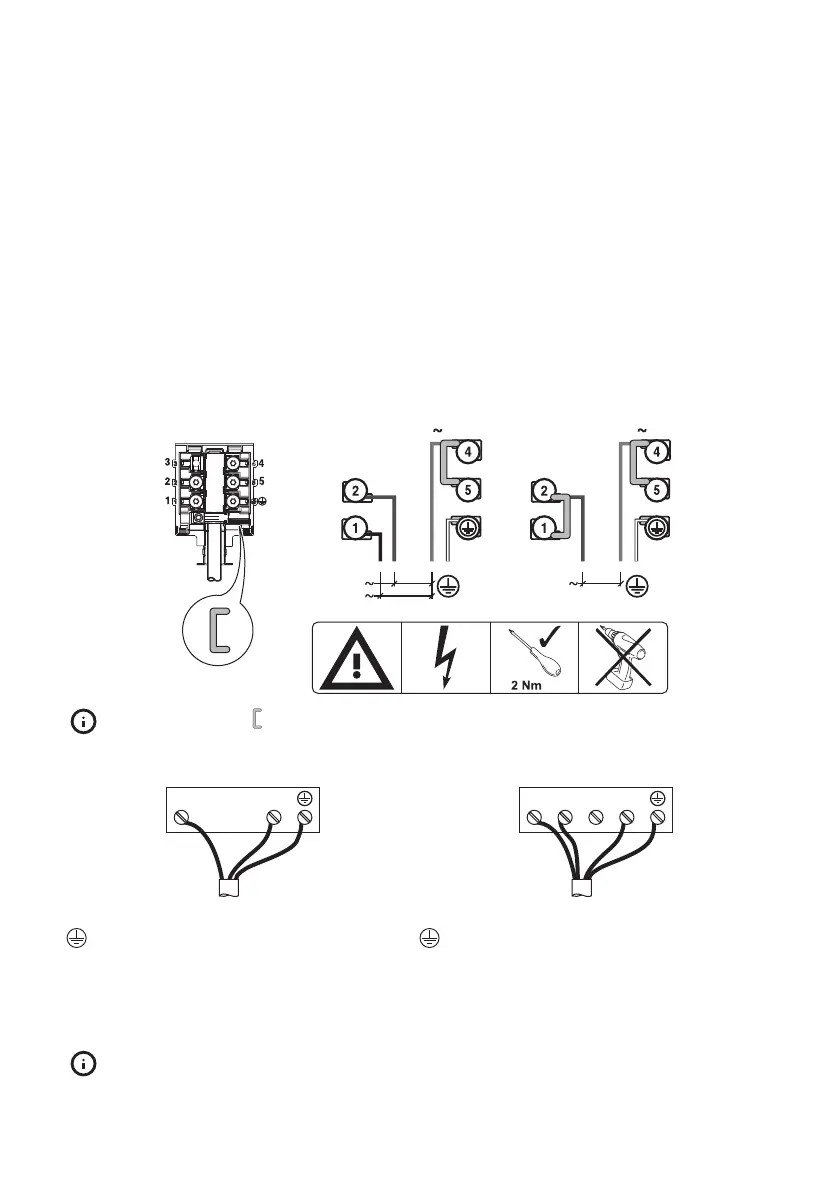

Connection diagram
220V-240V 1N
220V-240V
N PE
L
400V 2N
220V-240V
220V-240V
N
L1
L2
PE
Insert the shunts between the screws as shown.
Main power connection 1-phase Main power connection 2-phase
Wiring colours: Wiring colours:
Yellow / green Yellow / green
N Blue N Blue
L Black or brown L1 Black
L2 Brown
Tighten the terminal screws
securely!
Once you connect the hob to the mains,
check if all the cooking zones are ready to
use. Place a pot with some water on a
ENGLISH 10
