ENGLISH 8
a short cycle. With cleaning in a dishwasher
the grease fi lter may become dull; this does
not effect its fi ltering capacity.

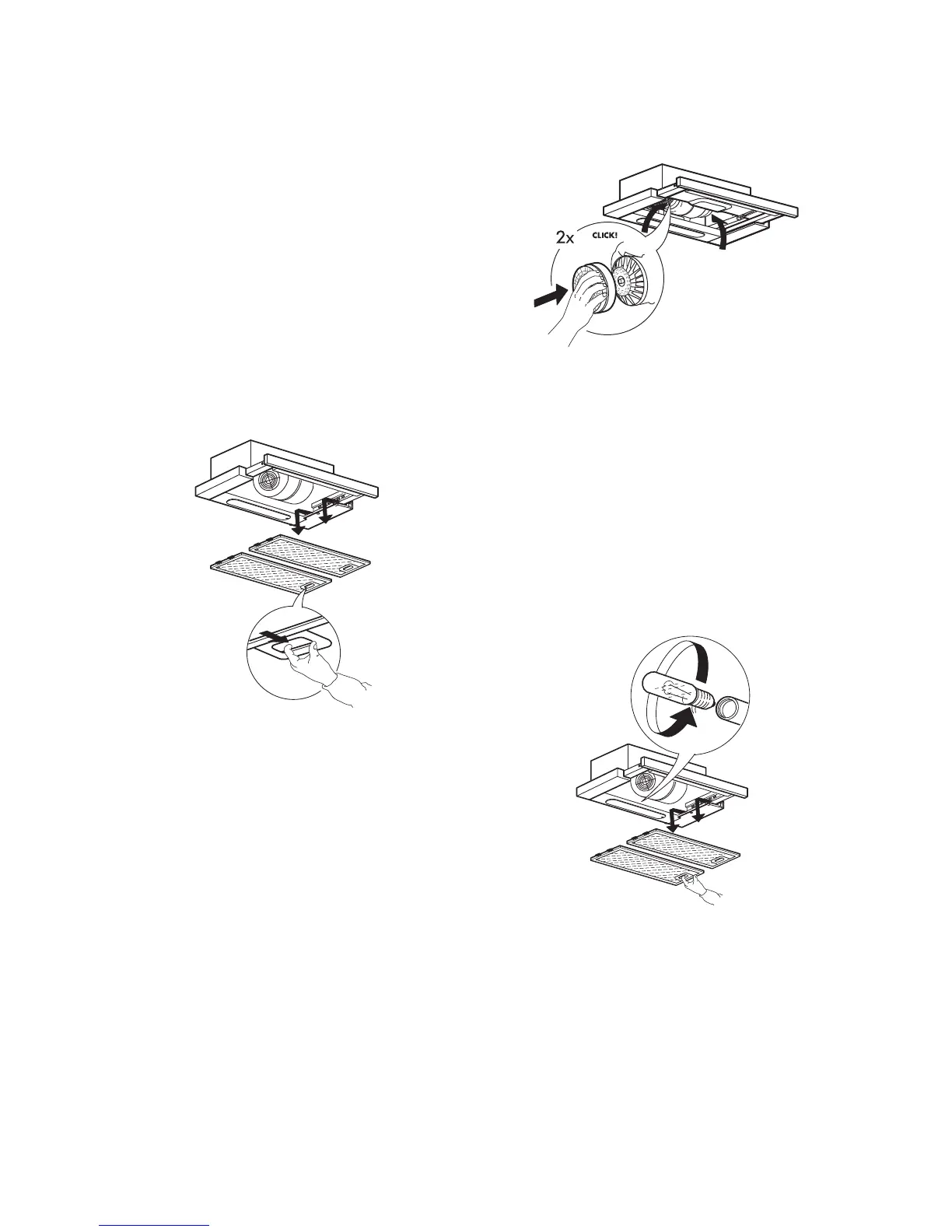

Grease fi lter maintenance:
1. Unplug the appliance or disconnect the
power supply.
2. Remove the grease fi lters: pull the spring
release handle, then remove the fi lter
downwards.
3. After cleaning the grease fi lter, remount
in reverse order ensuring the entire
extraction surface is covered.
Charcoal fi lter maintenance
1. Disconnect the electrical power supply.
2. Remove the grease fi lter/s
3. If the charcoal fi lters are already
mounted and need renewing, pull until
the fi lters release.
4. If the charcoal fi lters are not already
mounted, locate the fi lters to cover the
motor protection grilles (two protection
grilles - two charcoal fi lters), press and
lock in place.
5. Refi t the grease fi lter/s
Charcoal fi lter is neither lavable nor
regenerable. Replace it every 4 months.
Lamp maintenance
1. Disconnect the electrical power supply.
2. Remove the grease fi lters
3. Remove the burnt-out bulb.
4. Replace using only candel-shaped self
ballasted fl uorescent lamps with double
envelope, 7 W, E14, max diameter 40
mm, max length 115 mm.
5. Replace the grease fi lters into position.
IMPORTANT: make sure you don’t touch the
lamp with your bare hands.
