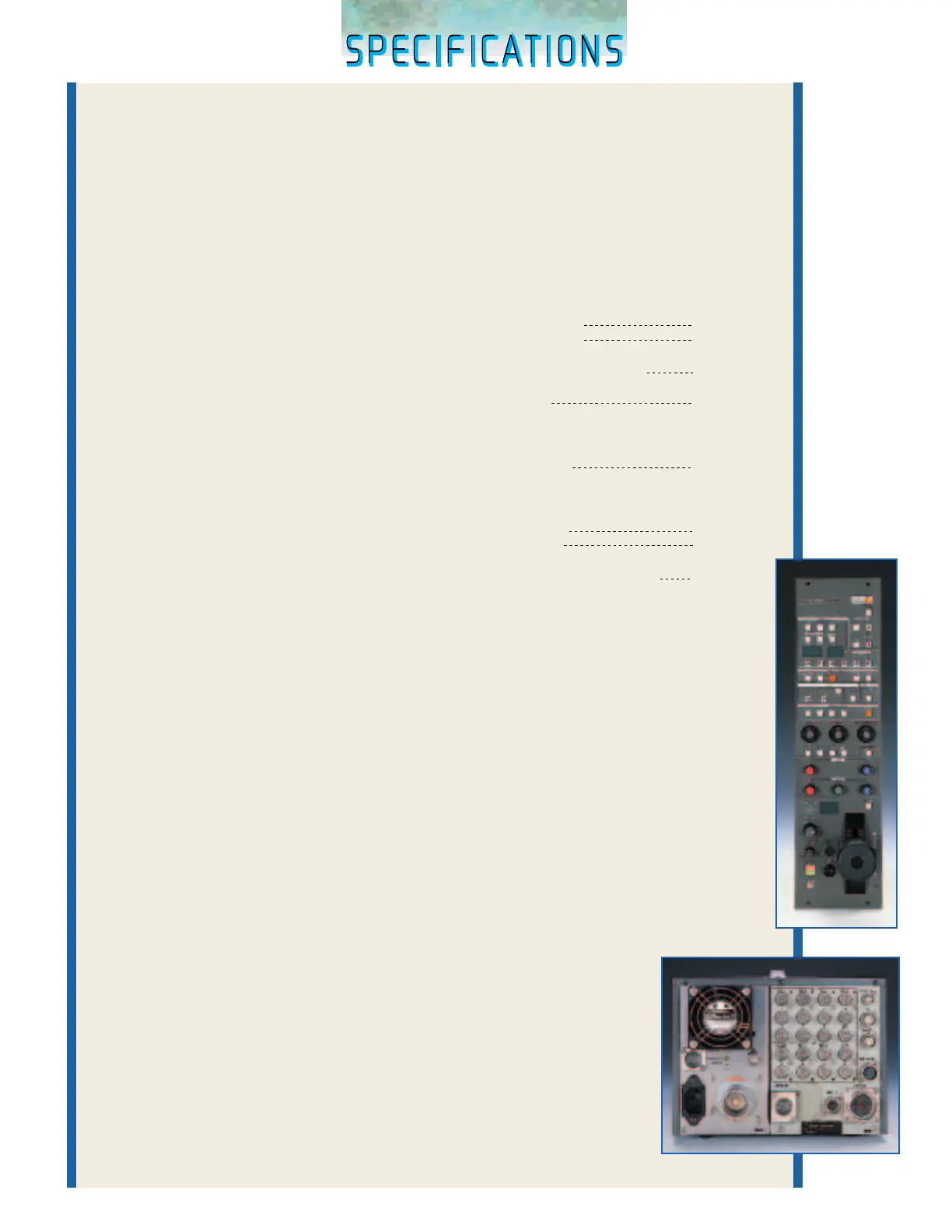

Optical System RGB prism type f1.4
Image Sensor 2/3" 3 IT CCDs
Effective Number of Pixels HL-45A NTSC : Approx. 480,000 pixels (H980 ✕ V494)
PAL : Approx. 570,000 pixels (H980 ✕ V582)
HL-45AW NTSC : Approx. 460,000 pixels (H948 ✕ V485)
PAL : Approx. 540,000 pixels (H936 ✕ V575)
Total Number of Pixels HL-45A NTSC : Approx. 520,000 pixels (H1038 ✕ V504)
PAL : Approx. 620,000 pixels (H1038 ✕ V594)
HL-45AW NTSC : Approx. 520,000 pixels (H1020 ✕ V505)
PAL : Approx. 600,000 pixels (H1008 ✕ V591)
Sync System Internal/External sync (genlock)
Input Signal External sync signal : VBS 1.0Vp-p 75
Ω or
(genlock) BBS 0.45Vp-p 75
Ω 1 channel
RET. video signal : VBS 1.0Vp-p 75
Ω 1 channel
(26pin connector)
Microphone input : -60dB balance high impedance 1 channel
(XLR type, 3pin connector)
Output Signal Composite signal : 1.0Vp-p 75
Ω 2 channels
(BNC connector, 26pin connector)
Y/C signal Y : 1.0Vp-p 75
Ω
C : 0.286Vp-p 75Ω
(26pin connector) 1 channel
Component signal Y : 1.0Vp-p 75
Ω
P
B/PR : 0.700Vp-p (NTSC) 75Ω
PB/PR : 0.525Vp-p (PAL) 75Ω
(26pin connector) 1 channel
RGB signal : V 0.7Vp-p 75
Ω 1 channel
(26pin connector)
Audio signal : -20dBm/-60dBm 600
Ω balance 1 channel
Lens Mount B4 bayonet
Optical Filter HL-45A : 3200K, 5600K+1/16, 5600K, Effect
HL-45AW : 3200K, 5600K+1/16, 5600K, 5600K+1/64
Gain Selection -3,0,+6,+9,+12,+18,+30,+36dB
Shutter 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000
NTSC : Variable : 1/60.3
앑1/201
PAL : Variable : 1/50.3
앑1/200
DTL Correction Horizontal : Dual edged (with comb filter)
Vertical : Dual edged (2H system)
Shading Correction Corrects the horizontal/Vertical shading
(black shading and white shading)
Flare Correction Can be corrected for each of R,G,B channels
Color Bar SMPTE Bar
Color Matrix 6 axis linear matrix
Dynamic Range 600%
Auto Knee Auto, fixed, OFF selectable
Auto White Balance Preset (3200K)1ch, Memory (A,B) 2ch
Auto Black Balance Built -in
Scene File 4ch memory
Auto Iris Digital system
Horizontal Resolution HL-45A : 900TV lines or more
HL-45AW : 750TV lines or more
Vertical Resolution NTSC : 400TV lines/480TV lines (SUPER-V)
PAL : 450TV lines/570TV lines (SUPER-V)
Modulation Depth (5MHz) 75%
S/N NTSC : 64dB
PAL : 61dB
Sensitivity *Standard HL-45A : f10 at 2000 lx
HL-45AW : f11 at 2000 lx
*Minimum HL-45A : f1.4 at 0.7 lx (with +36dB gain up)
HL-45AW : f1.4 at 0.5 lx (with +36dB gain up)
Registration Entire screen : within 0.05%
Input Voltage DC+11V
앑16V
Power Consumption Approx. 15W(excluding VF)
Ambient Temperature -10°C
앑+40°C (+14°F앑+104°F)
External Dimensions W126 ✕ H281 ✕ D170mm (4.96 ✕ 11.06 ✕ 6.69 inches)
Weight Approx. 2.6kg (5.7 lbs) (excluding VF, mic, VCR adaptor)
■
HL-45A/45AW
BS-45 (Rear View)
OCP- 45
