ikonic Privacy Lever Set - Page 2

Fellino Lever Set
Line B
Line A
C
D
60mm
(or 70mm)
E
K
F
L
L
M
F
O
70mm
60mm
70mm
60mm
Template for new doors using 54 mm hole saw.
60 mm
70 mm
Latch Height
C
Latch Height
C
Line B
Line A
Fold to Door Edge
Line B
Fold to Door Edge
D

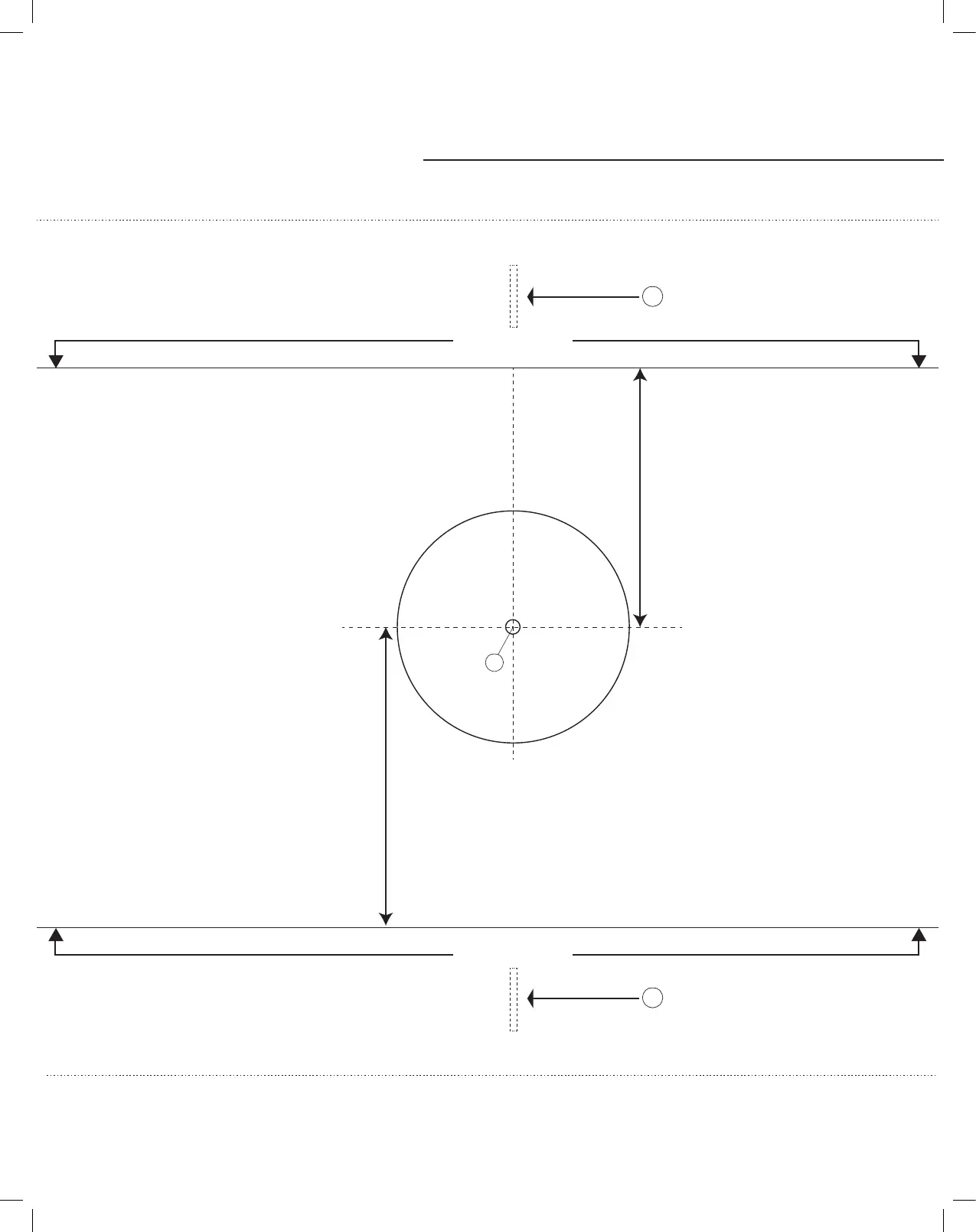

Drilling template - 60mm or 70mm Latch
