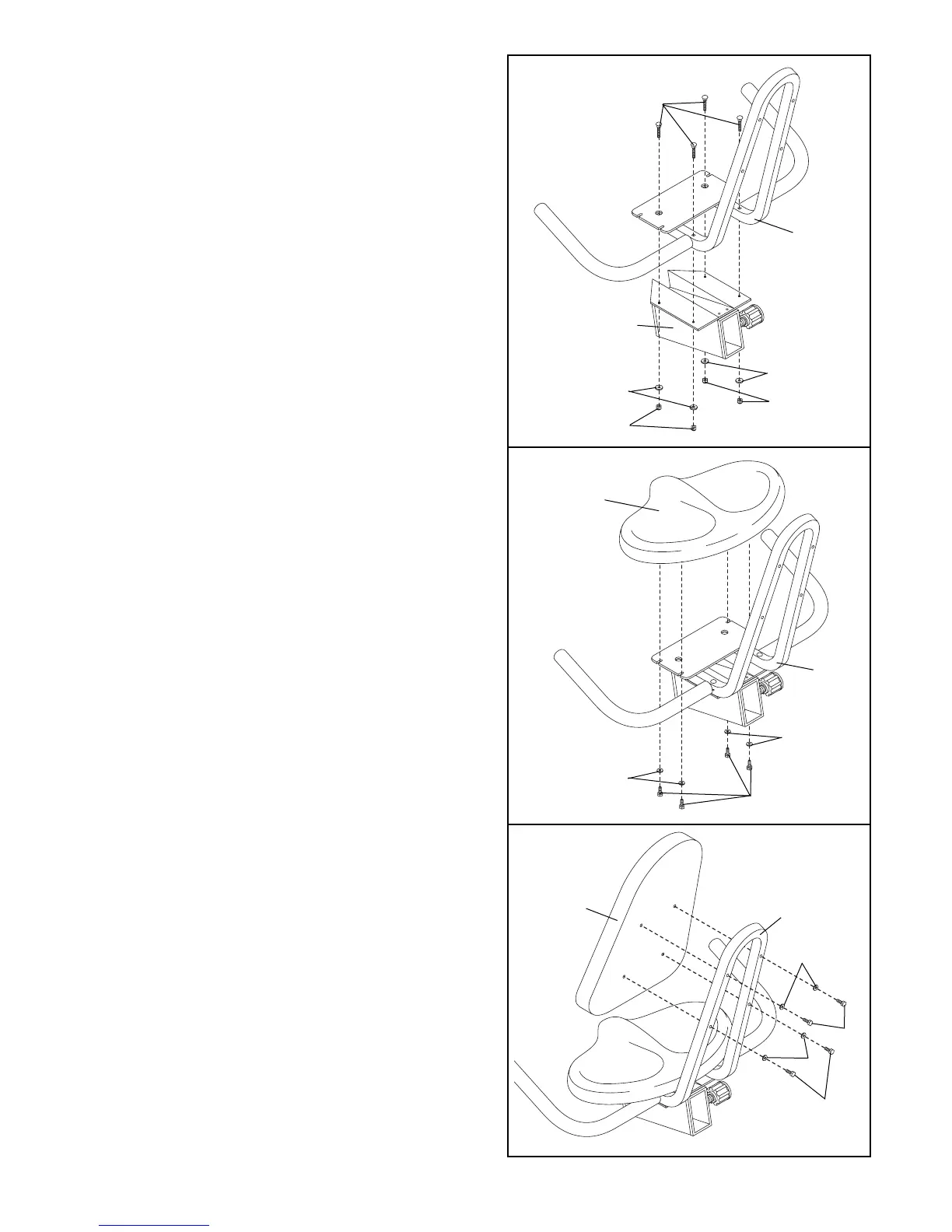

9. Attach the Backrest (13) to the Seat Frame (27)
with four M6 x 38mm Hex Screws (73) and four M8
Black Flat Washers (57).
13
27
73
73
57
57
9
8. Attach the Seat (12) to the Seat Frame (27) with
four M6 x 15mm Hex Screws (29) and four M8
Black Flat Washers (57).
57
29
57
12
27
8
7. Attach the Seat Carriage (11) to the Seat Frame
(27) using four M8 x 35mm Carriage Bolts (7), four
M8 Black Flat Washers (57), and four M8 Nylon
Locknuts (56).
27
57
57
7
11
56
56
7
