IMAGO Chip Shot - Page 16

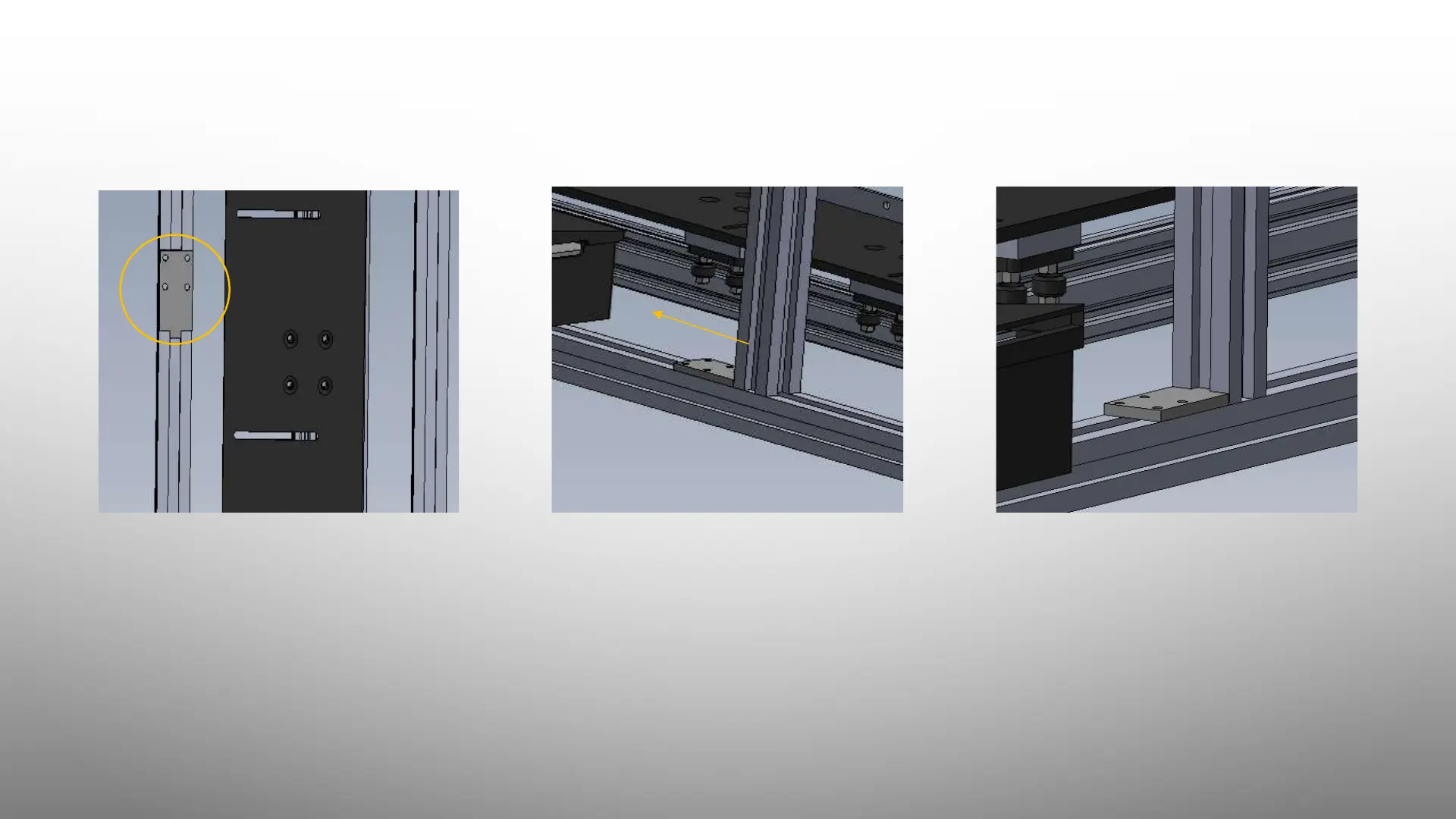

ASSEMBLY- STEP 3
• THIS IS THE POSITION
ONE TAB
• SIZE 5 ALLEN
• SLIDE EXT. 1 UP
AGAINST THE POSITION
ONE TAB
• MAKE SURE THE
EXTRUSION IS FLUSH TO
THE TAB AND BOTTOM
EXTRUSION FRAME
