IMAGO Chip Shot - Page 28

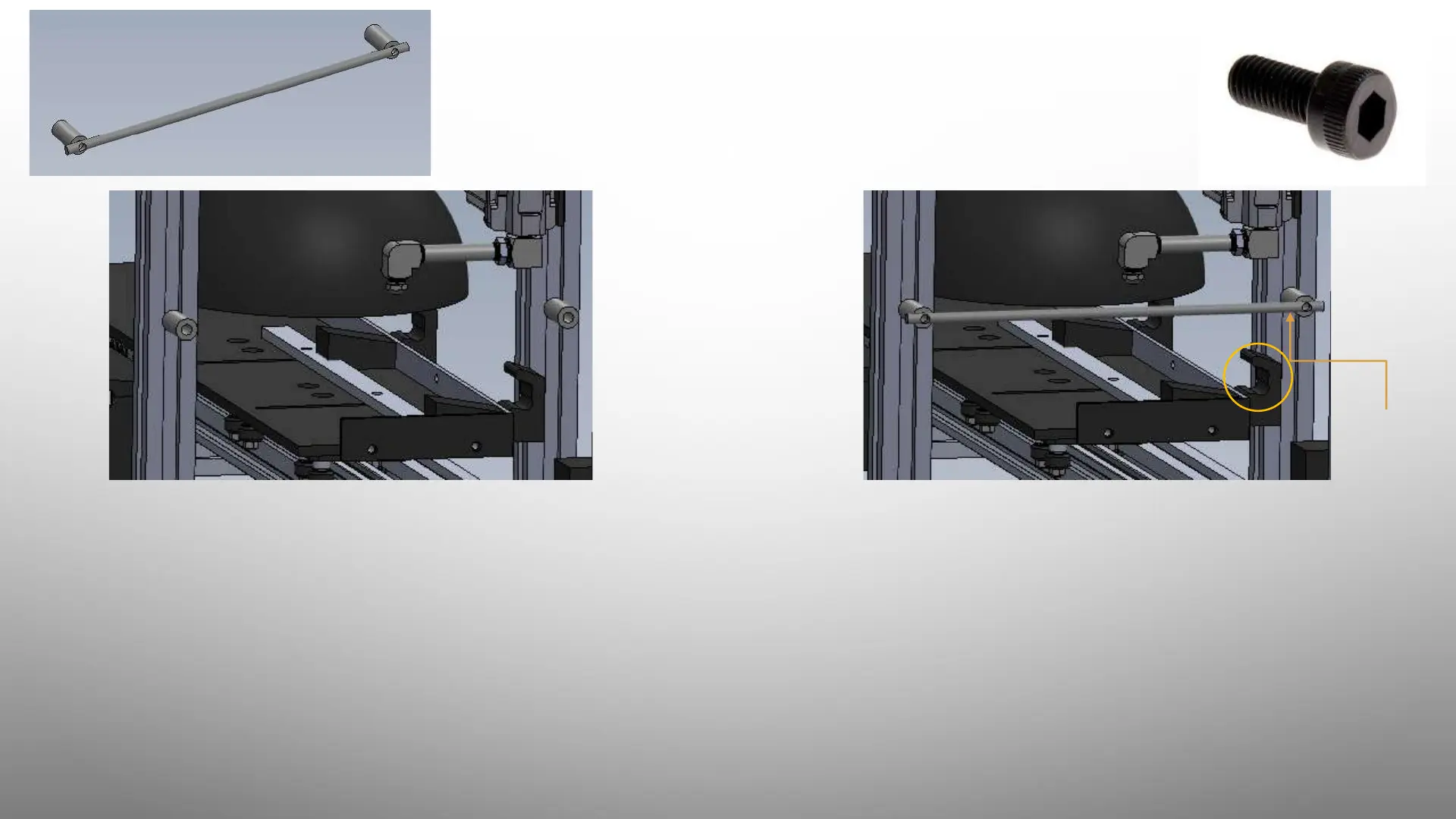

ASSEMBLY- STEP 15
• SIZE 4 ALLEN
• REMOVE SCREWS FROM T-NUTS
• FEED SCREWS THROUGH CRASH
BAR INTO T-NUTS
• ENSURE CRASH BAR IS PARALLEL
WITH THE CHIP TRAY PLATE ABOVE
THE CHIP TRAY TABS, AND BELOW
THE BOTTOM OF THE DOME LIGHT
CRASH BAR
ABOVE CHIP
TRAY TABS
