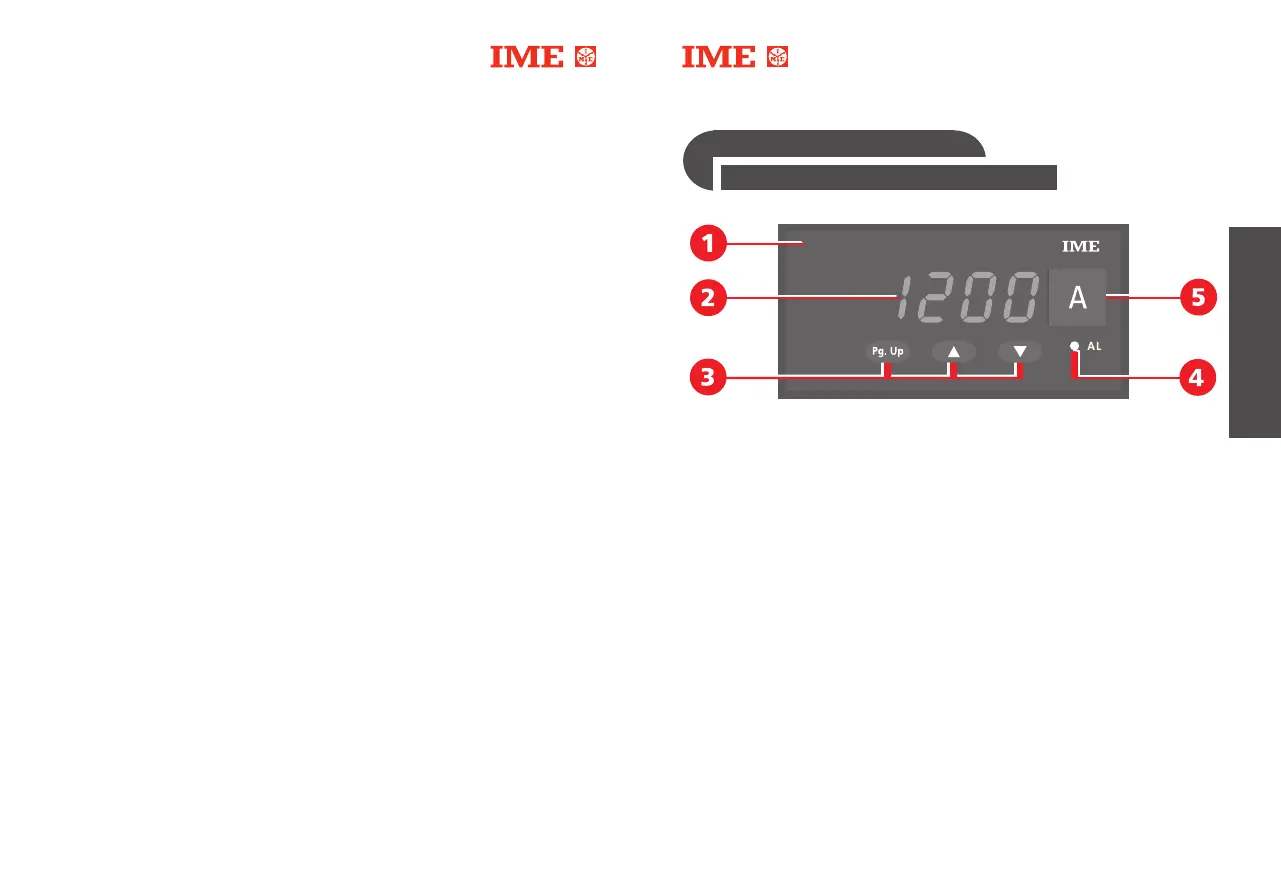

1 • IP50 FRONT FRAME PROTECTION EN60529 (DG4P/DG4Q)
As option, IP54 front frame protection is available.
2 • DISPLAY
Red LED display, highest indication –1999…1999 (DG4P/RM3C) and
0…9999 (DG4Q).
3 • KEYBOARD
3 keys used for the configuration or to select the display (instantaneous
value, peak value and state of the alarms).
4 • ALARM DETECTING LED
Its lighting shows that one or both of the alarms have intervened (entering
the menu you can display the state of the alarms, verifying if one or both
of the relays are in anomaly condition).
When this anomaly condition is over
, the LED automatically turns off.
5 • ENGINEERING UNIT STICKY LABEL
User-customizable. Together with the meters 18 sticky labels with the most
common engineering units ar
e supplied. ■
English
33
b Pour la valeur, agir sur
▲
ou bien
▼
jusqu’à obtenir la valeur
désirée puis appuyer sur PgUp
160 L’afficheur indique End; appuyer en même temps sur
▲▼
pour
confirmer la programmation.
170 L’afficheur indique Sto; l’appareil mémorise la programmation et
quitte automatiquement le menu. ■
