IMI SC Series User Manual

_____________________________________________________________________________________
STI S.r.l. – Via Dei Caravaggi 15, 24040 Levate (BG) – ITALY www.imi-critical.com
Manual 5021, rev. 00 10/2015 – SC/VHS - 18 -
8.2.1 Hydraulic cylinder seals replacement.

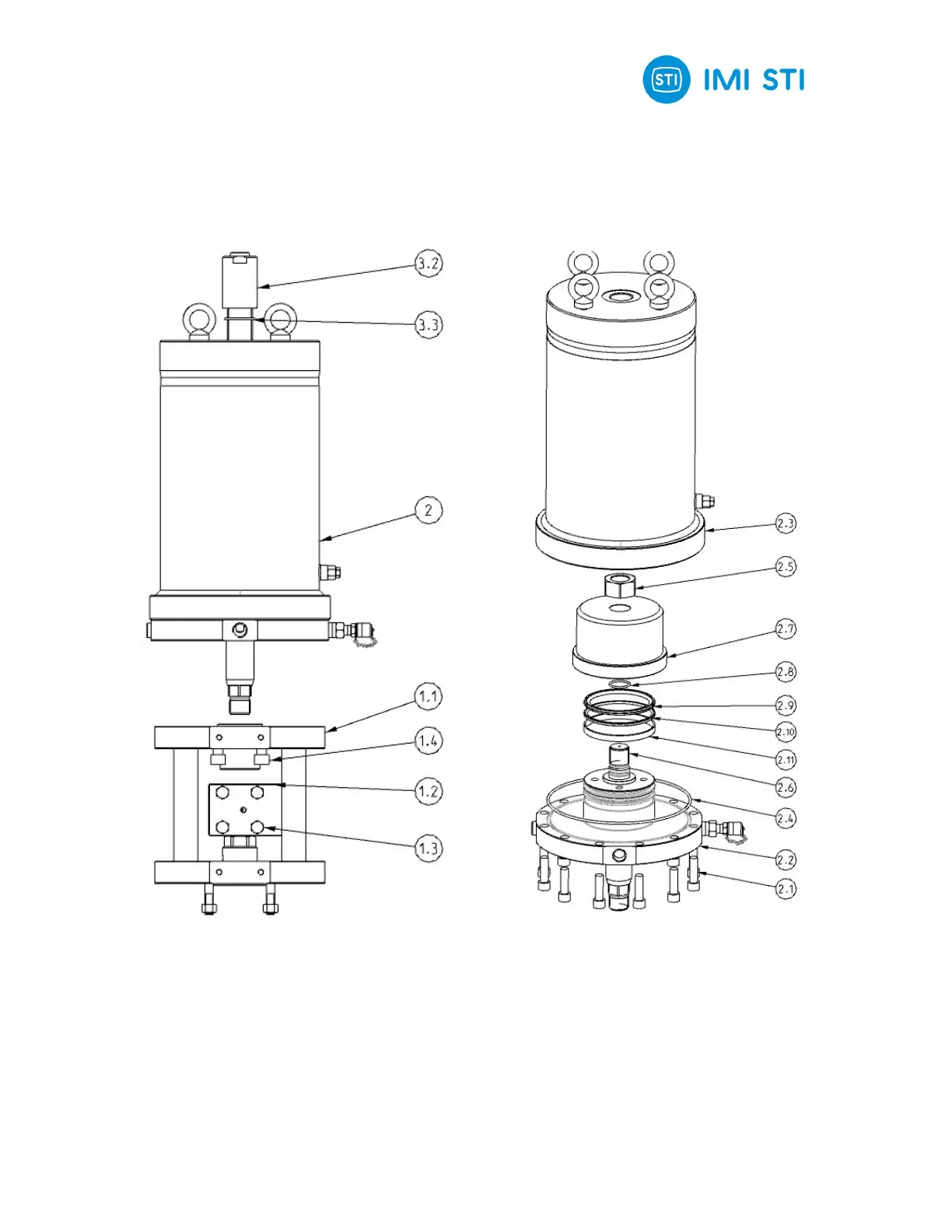

Fig. 6 – Hydraulic cylinder seals replacement
Before unmounting the cylinder (2) it’s necessary first of all disassemble the valve adaptation assembly
(1.1) and the coupling joint (1.2) by unscrewing the screws (1.3) and (1.4) (fig. 6.1).
Fig. 6.1 Fig. 6.2
