Before you drill or cut any holes, investigate your car's layout very carefully. Take care when you work near
the gas tank, fuel lines, hydraulic lines and electrical wiring.
Do not operate the amplifier when it is not mounted. Attach all audio system components securely within
the automobile to prevent damage, especially in case of an accident.
Precautions
Do not mount this amplifier so that the wire connections are unprotected or in a pinched condition, or likely
to be damaged by nearby objects.
Before making or breaking power connections in your system, disconnect the vehicle battery. Confirm that
your head unit or other equipment is turned off while connecting the input jacks and speaker terminals.
If you need to re plac e th e power fuse , replac e it only with a fuse identi ca l to th at su pplied with the syste m. Using a fuse of
differe nt typ e or ra ti ng may re su lt in dam ag e to yo ur syste m which isn't covered by th e man ufactu re r' s war ra nty.

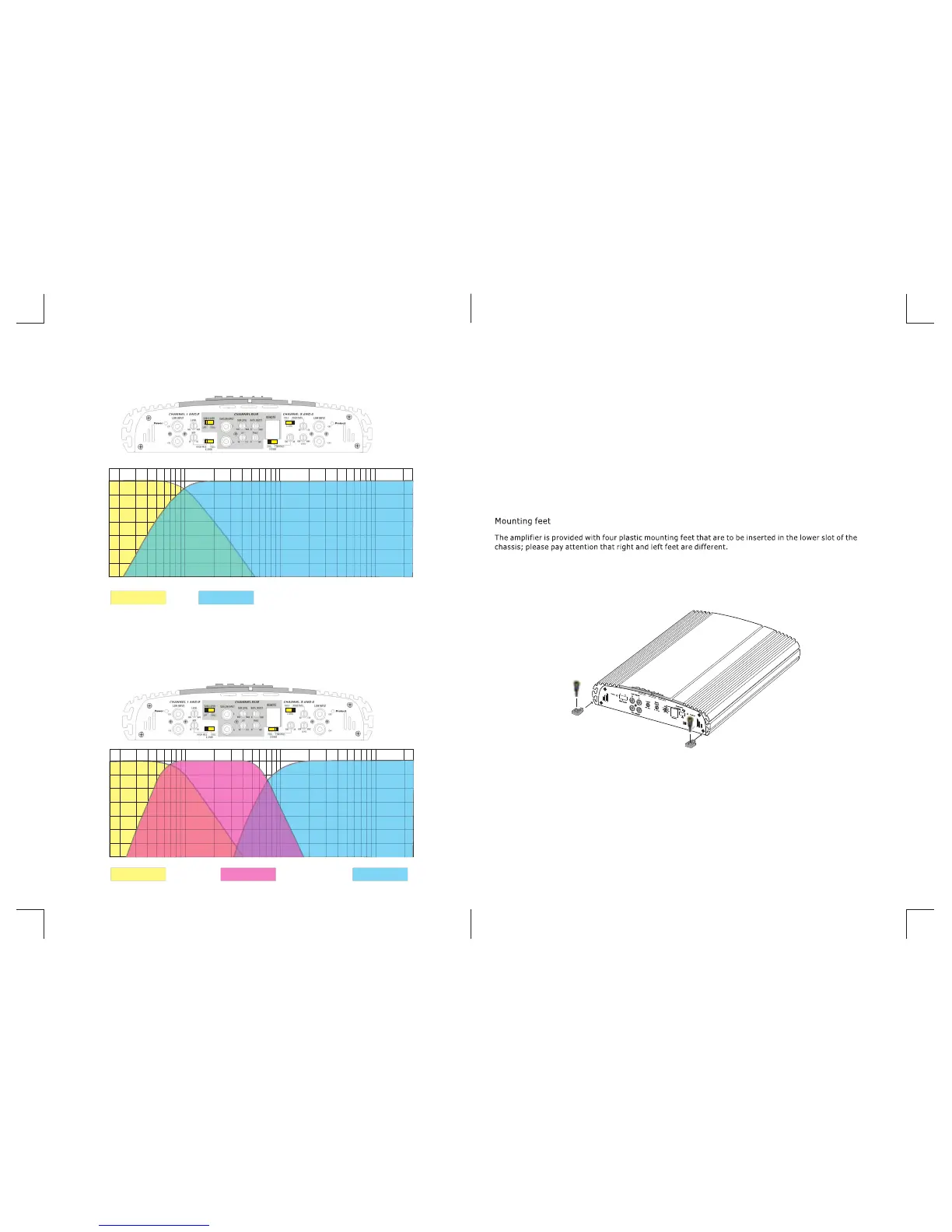

Sub Channel: Subwoofer: Low Pass 100 Hz
Channel 1-2-3-4 (Bridged): 2 way system with passive x-over
Channel 1-2: High Pass = 80 Hz
Channel 3-4: Low Pass = Full - High Pass = 80 Hz (must be the same frequency of ch 1-2)
20
100
1 KHz 10 KHz
0 Db
Sub Ch
Ch 1-2-3-4
-3 Db
-9 Db
-6 Db
System 4: Subwoofer + Powerfull 2 Way Passive Front System
20
100
1 KHz 10 KHz
0 Db
-3 Db
-9 Db
-6 Db
Sub Channel: Subwoofer: Low Pass 100 Hz
Channel 1-2: Midrange / Tweeter (Tw with passive x-over): High Pass = 800 Hz
Channel 3-4: Mid Bass: Low Pass = 800 Hz - High Pass = 80 Hz
Sub Ch
Ch 1-2Ch 3-4
System 5: Subwoofer + Mid Bass + Midrange & Tweeter
