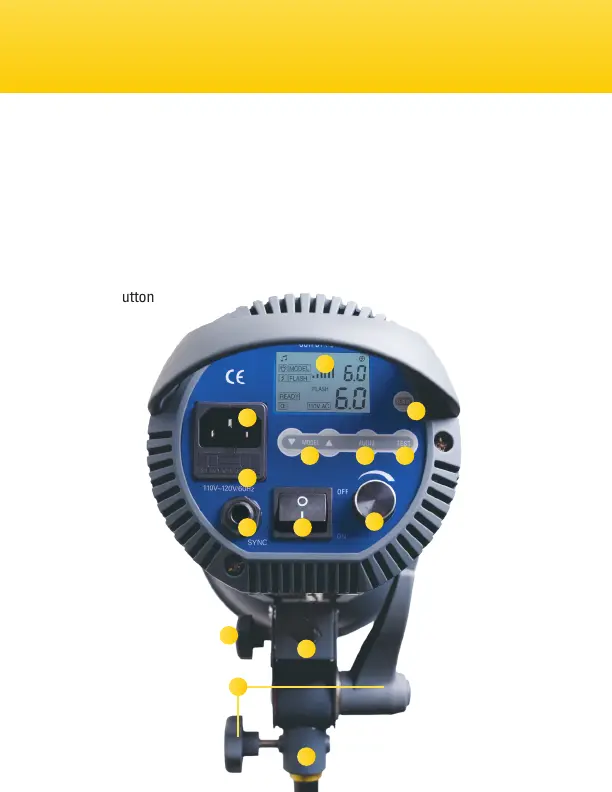

Back Side:
1. LCD screen
2. Slave mode button
3. Power input jack
4. Fuse bay
5. Modeling lamp output buttons
6. Audio button
7. Test button
8. 6.35 mm sync port
9. Power switch
10. Output adjustment dial
11. Stand mount
12. Stand mount adjustment knobs
13. Umbrella mount
14. Umbrella mount tightening knob
1
2
3
4
5 6 7
8 9
10
11
13
14
12
