─ 18 ─

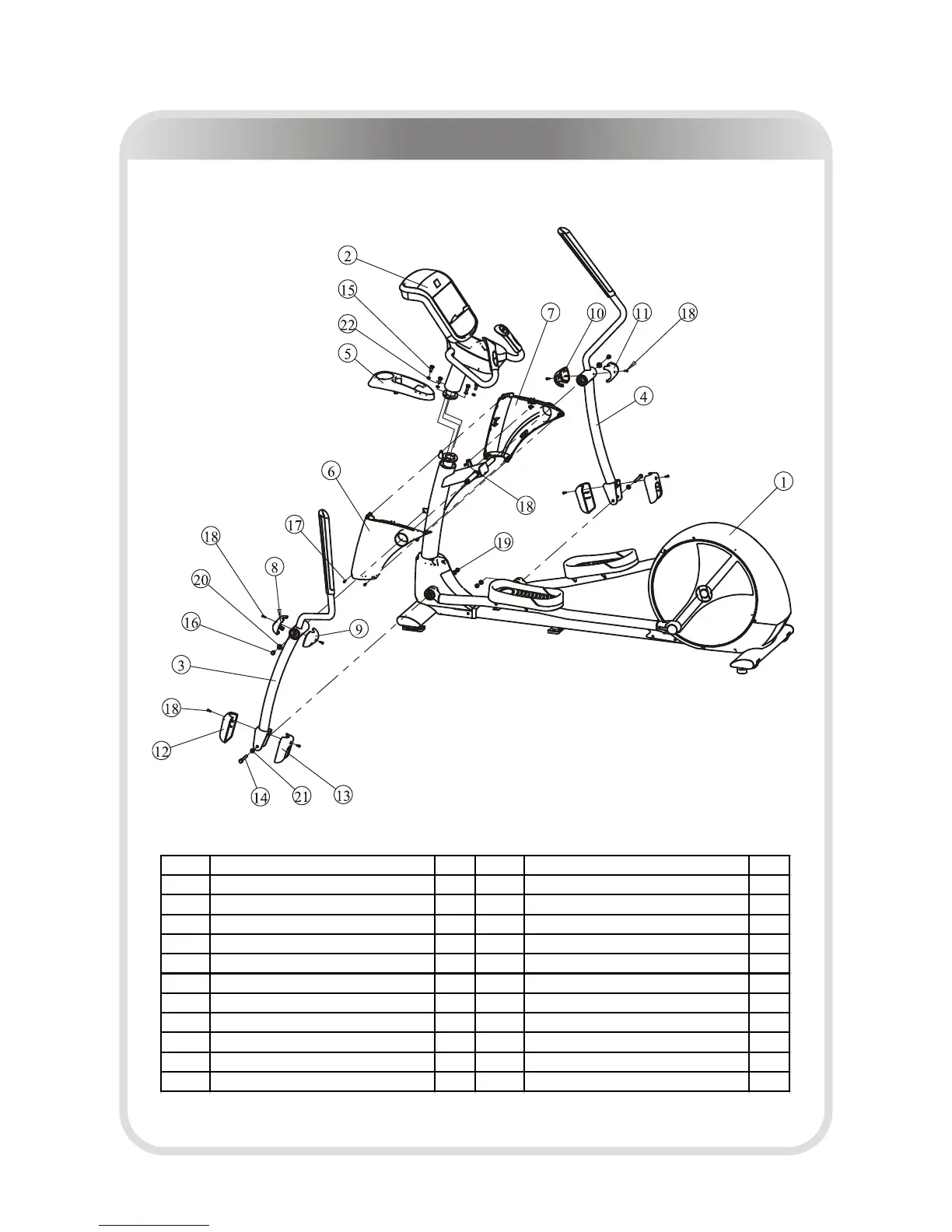

Exploded View and Parts List

Overall

ITEM NO.

Description QTY

ITEM NO.

Description QTY

1 Main Frame ASSY 1 12 Front Cover 2

2 Console ASSY 1 13 Rear Cover 2

3 Left Handle Bracket ASSY 1 14 Hex Head Bolt M10*85 2

4 Right Handle Bracket ASSY 1 15 Hex Head Bolt M10*25 4

5 Front Top Cover 1 16 Hex Head Bolt M10*15 2

6 Left Top Cover 1 17 Pan Head Phillips Screw M5*20 4

7 Right Top Cover 1 18 Pan Head Phillips Screw M5*15 9

8 Left Rotating Cover 1 1 19 Nylon Insert Lock Nut M10 2

9 Left Rotating Cover 2 1 20 Washer Φ11*Φ25*2 2

10 Right Rotating Cover 1 1 21 Washer Φ11*Φ20*2 4

11 Right Rotating Cover 2 1 22 Spring Washer Φ10 4
