I MSA I 8080 SYSTEM
GENERAL ASSEMBLY
AND TEST INSTRUCTIONS

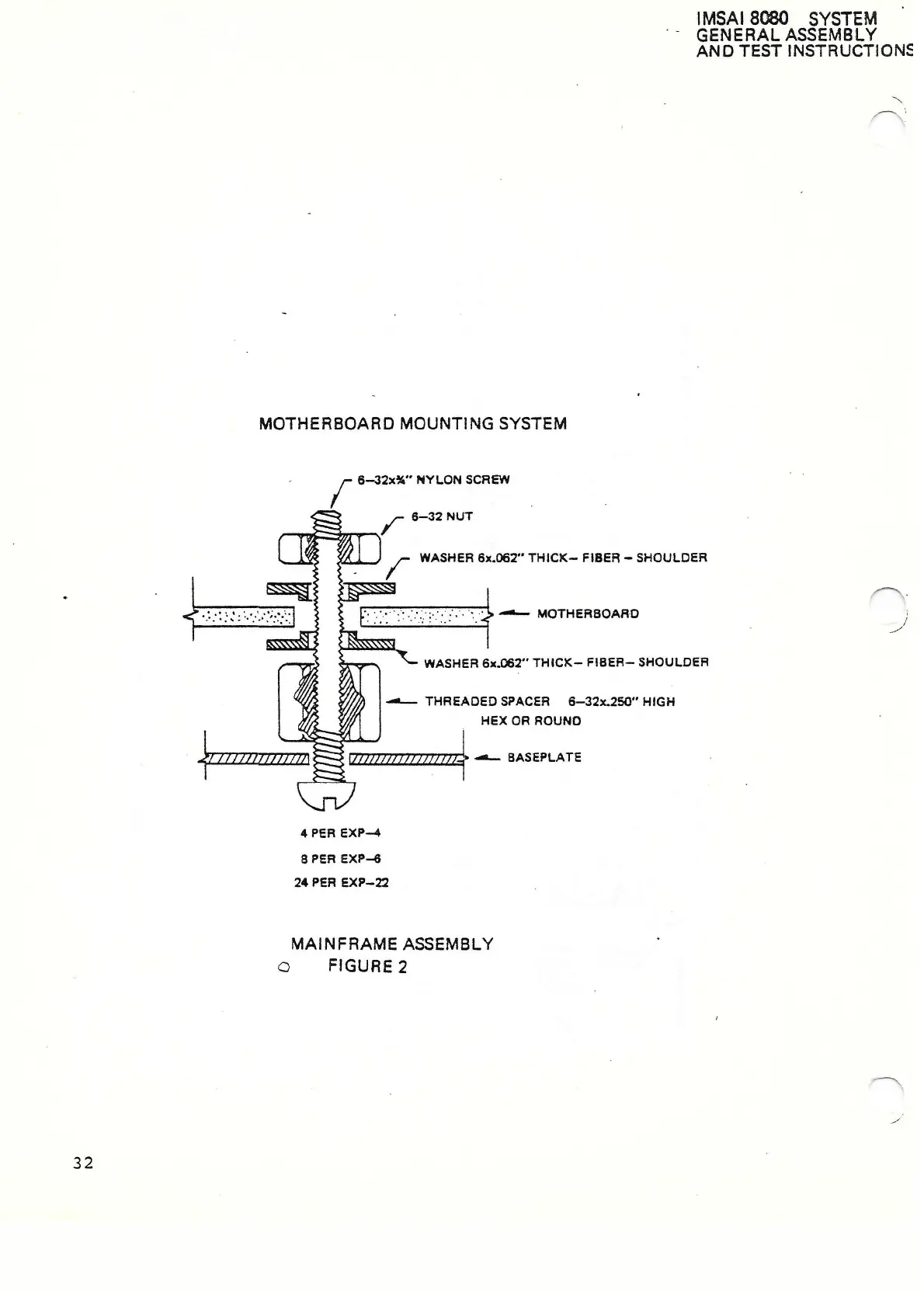

MOTHERBOARD MOUNTING SYSTEM
6—32x%" NYLON SCREW
6 -3 2 NUT
WASHER 6x.062" T H IC K- FIBER - SHOULDER
MOTHERBOARD
WASHER 6x.C62" T H IC K - FIB ER- SHOULDER
THREADED SPACER S-32X.250" HIGH
HEX OR ROUNO
BASEPLATE
4 PER EXP-4
3 PER EXP-6
24 PER EXP-22
MAINFRAME ASSEMBLY
FIGURE 2
