Page 18
English
Approvals
The test lungs meet CE guidelines.
Resistance curves
Due to the non-laminar flow, the resistance Rp (flow
resistance, parabolic resistance) depends on the flow.
As the the flow rate increases, the resistance increases
linearly and the pressure increases as the square of the
flow rate. It therefore behaves similarly to the resistance
of an endotracheal tube.
Pressure drop P = K × flow
2
Resistance R = K × flow
With K defined for each Rp:
Rp5 Rp20 Rp50 Rp200
K 2.7 17.61 108.7 2440
0.00
10.00
20.00
30.00
40.00
50.00
60.00
70.00
80.00
020406080 100 120 140
)rabm( P porD erusserP
Flow (L/min)
Rp50
Rp200
Rp20
Rp5

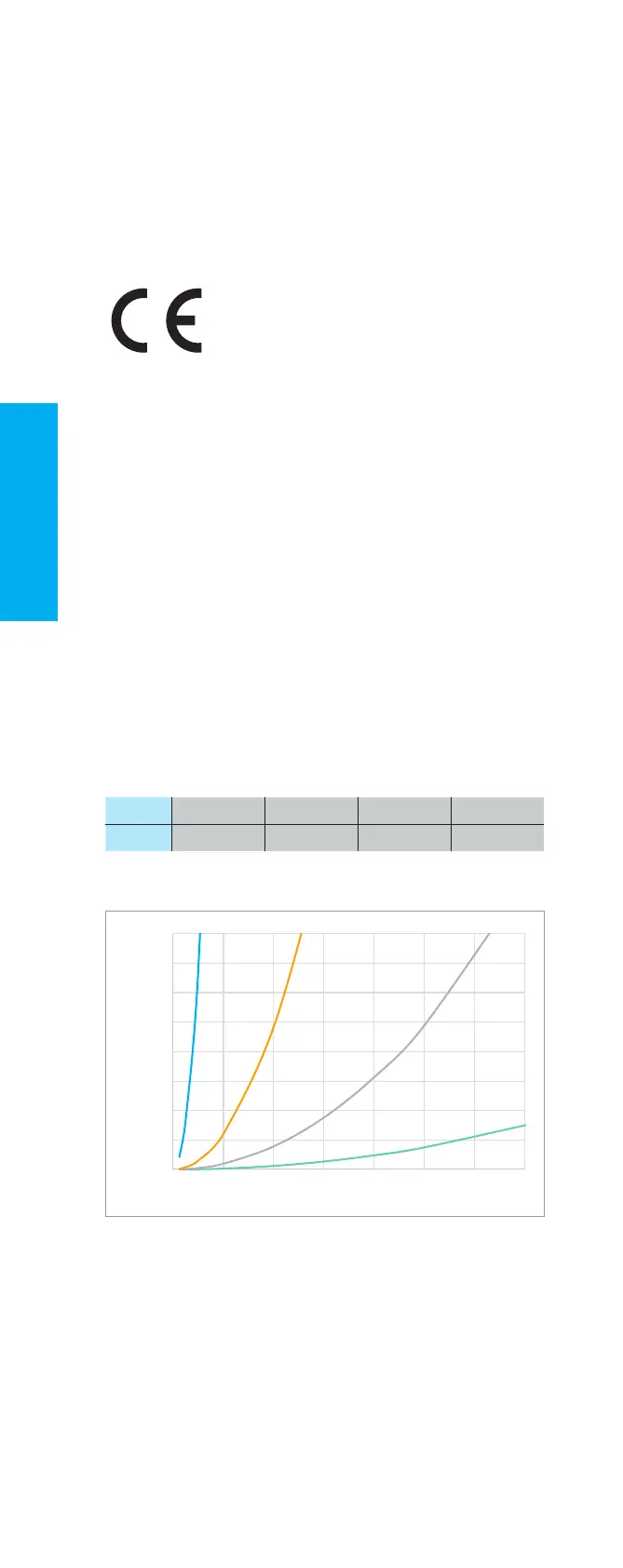

The pressure drop P for various Rp values at different flow rates
(parabolic curve)
