placing the antenna
Two ways to use:
1st To use the antenna in a place near or inside a
home, a windowsill balcony.
This arrangement is temporary, and of course, is with the inten-
tion of traveling to places of entertainment, for business travel,
vacation or second home where there is no stable installation of
radio antennas.
To do this, use only the control cable we provide, and insert it in
two sockets of the junction box and the remote antenna. In turn
the control cable has at its ends for inserting plugs and adjustable
enter the connector in the wrong position)
connectors PL.

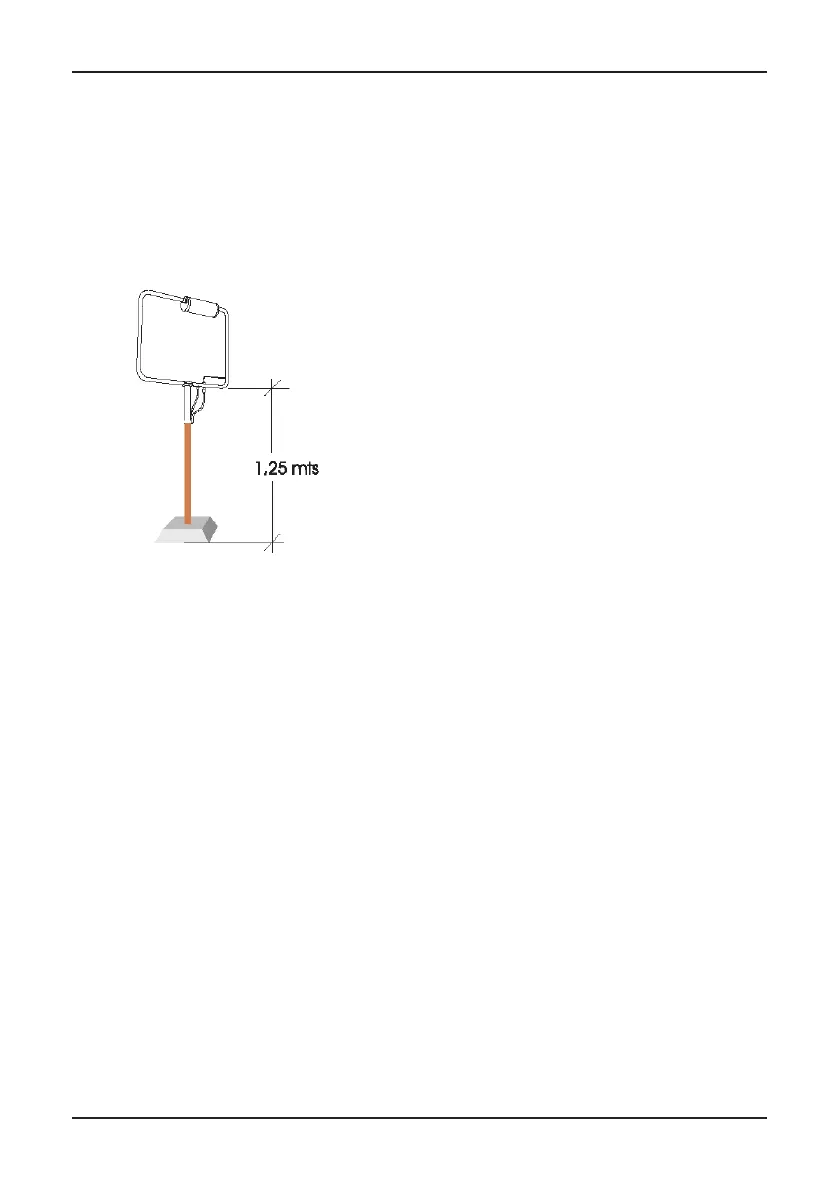

The antenna to be placed in a vertical position, you can use
the terrace umbrella bases are heavy material, or plastic
-
sert the pole of the umbrella, in our case, can directly enter
the mast, but it is advisable to extend a little as 1.25 m, su-
iron lattice, for it using a single mast aluminum or wood.
For 2nd place the antenna denitely rooftop roof or a remote location.
In this case the antenna ends in a metal tube, which can be anchored to a tower or foundation
toe rotor. This done, the electrical connection must be made by opening the connection box
ground, are very cheap and quality optimized) a minim section to 0.5 mm, for 20 meters and 1.5
mm section for a longer distance. It support a consumption of 1 A at 5 volts.
To Next Page
